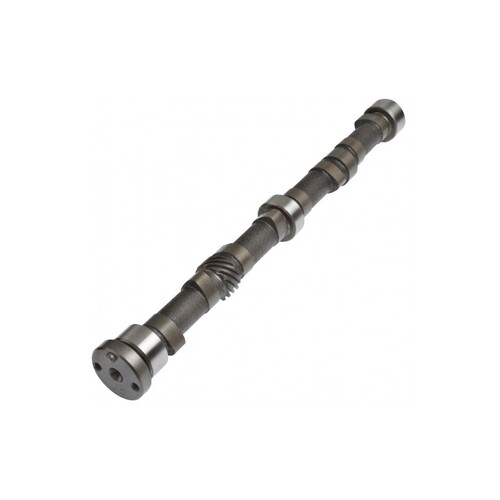

Kelford Cams 150-J Camshaft for (109E-116E) - 253/253 Deg
Kelford Cams 150-J Camshaft for (109E-116E) - 253/253 Deg
SKU: kelford-150-J

Kelford Cams 150-J Camshaft for (109E-116E) - 253/253 Deg

KELFORD CAMS

$544.50

or 4 payments of $136.12 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 150-J Camshaft for (109E-116E) - 253/253 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 253/253 Degrees duration @ 0.050" cam lift, .430"/.430" lift
  • For Mitsubishi 4G63 VR4 Evolution 1-3 engines. Drag Racing cams to suit extreme boost, high RPM engines that use Ethanol / Methanol and/or nitrous.

Specifications

Engine Make: Engine Model: Part Number:
FORD 109E - 116E Pushrod Engine 150-J
Valve Clearance: Intake: 0.016" Set HOT at the VALVE
  Exhaust: 0.016" Set HOT at the VALVE

Cam Lift:   Intake: 0.290" Exhaust: 0.290"
Rocker Ratio:   Intake: 1.54 Exhaust: 1.54
Nett Valve Lift:   Intake: 0.430" Exhaust: 0.430"
Advertised Duration @ 0.015" Intake: 310 Exhaust: 310
Duration @ .050" CAM LIFT Intake: 253 Exhaust: 253
Timing @ .050" CAM LIFT IVO: 23.5 BTDC EVO: 49.5 BBDC
    IVC: 49.5 ABDC EVC: 23.5 ATDC
Suggested Centre Lines:   Intake: 103 Exhaust: 103
VALVE Lift @ TDC Intake: 0.145" Exhaust: 0.145"



compatibility

  • 1961-1963 Ford Consul

SKU kelford-150-J
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
