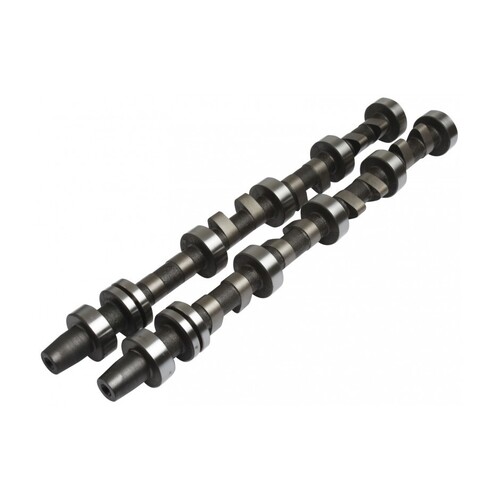

Kelford Cams 147-I Camshaft for (Cosworth BDA) - 269/269 Deg
Kelford Cams 147-I Camshaft for (Cosworth BDA) - 269/269 Deg
SKU: kelford-147-I

Kelford Cams 147-I Camshaft for (Cosworth BDA) - 269/269 Deg

KELFORD CAMS

$1,203.95

or 4 payments of $300.99 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 147-I Camshaft for (Cosworth BDA) - 269/269 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 269/269 Degrees duration @ 0.050" cam lift, .400"/.400" lift
  • Cosworth EA1 / BD4 cams

Specifications

Engine Make: Engine Model: Part Number:
FORD Cosworth BDA 147-I
Valve Clearance: Intake: 0.010" Set COLD at the CAM
  Exhaust: 0.010" Set COLD at the CAM

Cam Lift:   Intake: 0.410" Exhaust: 0.410"
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 0.400" Exhaust: 0.400"
Advertised Duration @ 0.010" Intake: 325 Exhaust: 325
Duration @ .050" VALVE LIFT Intake: 269 Exhaust: 269
Timing @ .050" VALVE LIFT IVO: 34.5 BTDC EVO: 57.5 BBDC
    IVC: 54.5 ABDC EVC: 31.5 ATDC
Suggested Centre Lines:   Intake: 100 Exhaust: 103
VALVE Lift @ TDC Intake: 0.188" Exhaust: 0.176"



compatibility

  • Ford Cosworth BDA

SKU kelford-147-I
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
