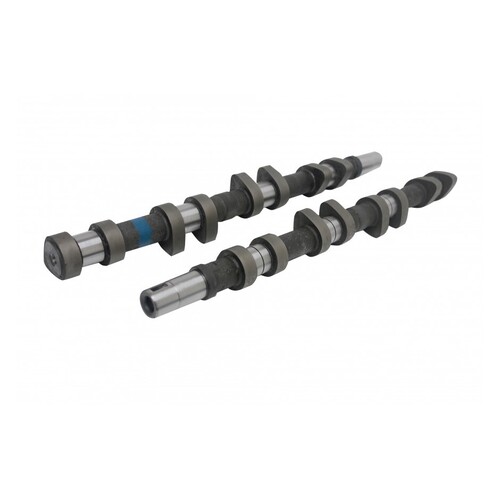

Kelford Cams 146-A Camshaft Set for (Cosworth YB) - 264/264 Deg
KELFORD CAMS
Description
item: Kelford Cams 146-A Camshaft Set for (Cosworth YB) - 264/264 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 264/264 Degrees advertised duration, 10.25mm/10.25mm lift
- Stage 1 Turbo cams for road and off road racing applications. Primary lobe specification is / Degrees advertised duration, lift.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
FORD | COSWORTH YB | 146-A | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 10.25mm | Exhaust: | 10.25mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 10.25mm | Exhaust: | 10.25mm | |||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | ||
Duration @ | 1.00 VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
Timing @ | 1.00 VALVE LIFT | IVO: | 3 BTDC | EVO: | 46 BBDC | ||
IVC: | 39 ABDC | EVC: | 4 BTDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 115 | |||
VALVE | Lift @ TDC | Intake: | 1.30mm | Exhaust: | 0.66 |
compatibility
- Ford Cosworth YB
Specifications
SKU | kelford-146-A |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
