Product Details

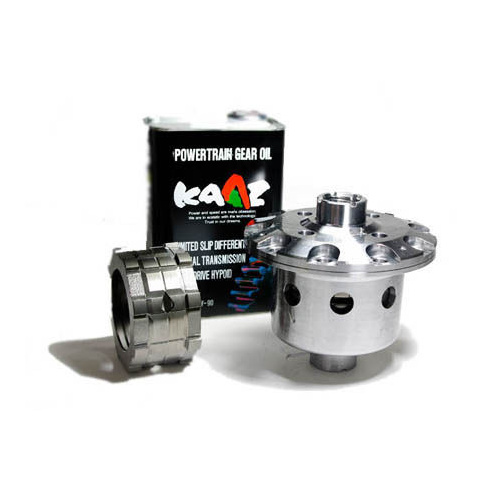

Kaaz L.S.D. is the pioneer in the large sized clutch plate design. It's effectiveness and durability has been proven at the race scene around the world.

For further information about Kaaz and the benefits of limited slip differentials, see our information sheet, complete with clutch size guide, here.

We also have an optional/overhaul parts list, view the list here.

SPECIFICATIONS:

Transmission - MT/AT
Diff position - rear
Standard diff - open
LSD Type - solid
Plate count - 16
Plate size - L
Ramp angle - 2 way

APPLICATION 1:

Make - Toyota
Model - Supra
Series - GA70
Year - August 1990 - May 1993

APPLICATION 2:

Make - Toyota
Model - Supra
Series - GA70 Turbo
Year - August 1990 - May 1993

APPLICATION 4:

Make - Toyota
Model - Supra
Series - MA70 Turbo
Year - February 1986 - August 1990

APPLICATION 5:

Make - Toyota
Model - Supra
Series - JZA70 Turbo
Year - August 1990 - May 1993

APPLICATION 6:

Make - Lexus
Model - Soarer
Series - MZ20/21 Turbo
Year - January 1986 - April 1991

APPLICATION 7:

Make - Lexus
Model - Soarer
Series - GZ20 Turbo
Year - January 1986 - April 1988

APPLICATION 8:

Make - Lexus
Model - Soarer
Series - GZ20 Turbo
Year - July 1988 - April 1991
Note: Manual models feature LSD Standard dif

APPLICATION 9:

Make - Toyota
Model - Hilux
Series - 5th generation
Year - 1988 - 1995
Note: This is NOT a direct fit application. Some modifications are required to be performed by a qualified differential specialist.
- Suits 30 spline axles
- Carrier bearing ID 50mm
- 4mm thick crown wheel spacer plate installation required
- Longer crown wheel bolts required. Can use Toyota OEM bolt T9010511031 x 10 pieces.

APPLICATION 9:

Make - Toyota
Model - Chaser (International only)
Series - GX71 Turbo
Year - August 1984 - August 1988

APPLICATION 10:

Make - Toyota
Model - Chaser (Int'l only)
Series - GX81 Turbo
Year - August 1988 - October 1992

APPLICATION 11:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX81 Turbo
Year - August 1990 - October 1992

APPLICATION 12:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX90 Tourer V Turbo
Year - October 1992 - August 1996

APPLICATION 13:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX100 Tourer S
Year - August 1997 - 2000

APPLICATION 14:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX100 Tourer V Turbo
Year - September 1996 - July 1999

APPLICATION 15:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX100 Tourer V Turbo
Year - August 1999 - 2000
Note: Applies to manual model only

APPLICATION 16:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX101
Year - August 1997 - 2000
Note: Applies to automatic model only

APPLICATION 17:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX110 Grande iR-V Turbo
Year - October 2000 - 2001

APPLICATION 18:

Make - Toyota
Model - Chaser (Int'l only)
Series - JZX110 Grande G-tb Turbo
Year - October 2000 - 2001
Note: Applies to automatic model only
