JE Pistons for Lightweight, Gas Ported, BBC 584 330160_1
JE Pistons for Lightweight, Gas Ported, BBC 584 330160_1
SKU: JE-PIS-330160_1

JE Pistons for Lightweight, Gas Ported, BBC 584 330160_1

Part Number: 330160_1

$2,145.60

or 4 payments of $536.40 with Info



In Stock


Calculate Shipping


Australia wide rate - $30.00 (ETA: 3 days)


Item: JE Pistons, Lightweight, Gas Ported, BBC 584, Bore 4.610, Stroke 4.375, Rod Length 6.535, Dome 49cc, 657 Grams, Set

JE Pistons new F.S.R. hollow dome GP (Gas Ported) pistons are specifically designed for circle track and drag racing applications. Up to 100 grams lighter than traditional full round (including wrist pin and rings), but stronger and more durable due to modern FEA-designed forging. Deeper valve pockets to accommodate higher lift cams and milled cylinder heads. Accepts low friction .043/.043/3.0mm ring package. Dome configuration designed to accommodate most popular open chamber cylinder heads, including Brodix Head Hunter with up to 2.400? diameter intake valves.

Includes:

  • Pin #990-2500-18-51C (151g)
  • Wire Locks 990-073-MW
  • Lateral gas ports
  • Accumulator grooves
  • Contact reduction grooves

    Compression Ratio:

  • 110cc 17.5:1
  • 118cc 15.8:1
  • 124cc 14.8:1

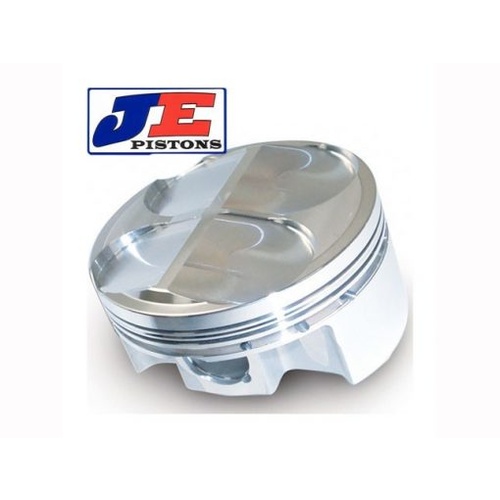

  • Photo is for illustration purposes only

    SKU JE-PIS-330160_1
    Brand JE Pistons
    Shipping Weight 10.0000kg
    Shipping Width 0.500m
    Shipping Height 0.200m
    Shipping Length 0.400m
