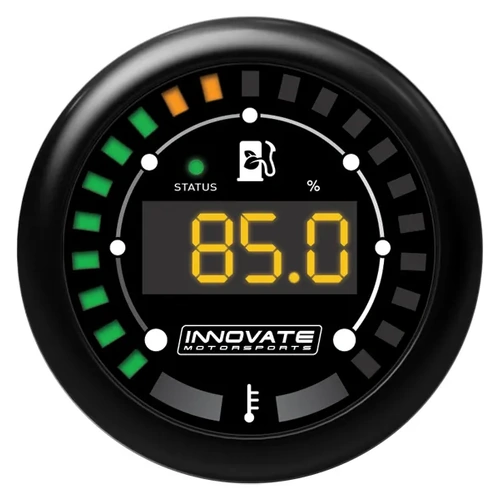

Innovate Motorsports MTX-D Ethanol Content % + Fuel Temp Complete Gauge Kit
Innovate Motorsports MTX-D Ethanol Content % + Fuel Temp Complete Gauge Kit
Innovate Motorsports MTX-D Ethanol Content % + Fuel Temp Complete Gauge Kit
Innovate Motorsports MTX-D Ethanol Content % + Fuel Temp Complete Gauge Kit
SKU: 3904

Innovate Motorsports MTX-D Ethanol Content % + Fuel Temp Complete Gauge Kit

$514.95

or 4 payments of $128.74 with Info



In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


The new Innovate Motorsports MTX Digital Series “Dual Function” Gauges are now available! The 2 1/16” (52mm) gauges feature a water resistant casing, interchangeable faceplates and bezels, locking connectors for simplified installation, and MTS serial connections used to connect with other Innovate devices for logging. Available color configurations for each kit shown above.

ETHANOL GAUGE KEY FEATURES

Ethanol Content:

  • Error reporting for ethanol content sensor (Digital Display)

Fuel Temp:

  • Change exterior LED as a fill bar or light a single indicating LED
  • Programmable exterior LED ranges vs. color
  • Programmable unit of measure as °F or °C
  • Programmable fuel temperature warning (outer LED)

2-Configurable analog outputs:

  • Ethanol Content: 0v = 0%, 5v = 100%
  • Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)

Specifications

DISPLAY RANGE

  • Ethanol Content %: 0-100%
  • Temp: -40-257 °F (-40-125°C)

What's Included

  • Gauge (Black Faceplate, Black Bezel)
  • Silver Bezel
  • White Faceplate
  • Harness
  • Program Cable (Serial)
  • Ethanol Content Sensor
  • Quick Start Installation Guide

Compatibility

  • Universal Part

SKU 3904
Brand INNOVATE MOTORSPORTS
Shipping Weight 3.0000kg
