Innovate ECF-1: (FUEL) Ethanol Content & Air/Fuel Ratio Gauge PnP Kit Subaru WRX STi 08+/ Subaru BRZ/ Toyota 86
Innovate ECF-1: (FUEL) Ethanol Content & Air/Fuel Ratio Gauge PnP Kit Subaru WRX STi 08+/ Subaru BRZ/ Toyota 86
SKU: INNOVATE-3903PNP

Innovate ECF-1: (FUEL) Ethanol Content & Air/Fuel Ratio Gauge PnP Kit Subaru WRX STi 08+/ Subaru BRZ/ Toyota 86

3903PNP

AUD$1,165.10

or 4 payments of AUD$291.27 with Info



In Stock


Calculate Shipping


Australia wide rate - AUD$25.00 (ETA: 3 days)

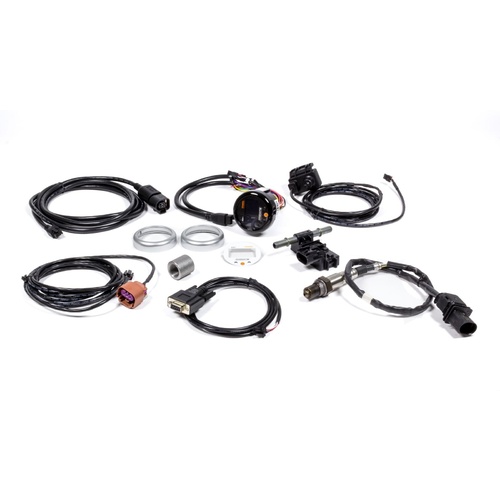

Item: Innovate ECF-1: (FUEL) Ethanol Content & Air/Fuel Ratio Gauge PnP Kit Subaru WRX STi 08+/ Subaru BRZ/ Toyota 86

The Ethanol Advanced gauges combine our patented DirectDigital O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand!

  • Four-in-one, ethanol content percentage, fuel temperature, fuel pressure, and wideband air/fuel ratio gauge
  • OLED user configurable display (one, two, or four channel viewing modes)
    • Ethanol %, Fuel Pressure, Fuel Temperature, Air/Fuel ratio
    • F orC, AFR or Lambda, PSI, kPa, or BAR
    • On screen error reporting for ethanol content sensor and wideband O2
  • Warning indicator LED for low fuel pressure (user programmable)
  • 0-145 PSI (10 Bar) fuel pressure sensor
  • 4-Configurable analog outputs for use with standalone and other programmable ECU™s as well as external data loggers
    • Ethanol Content: 0v = 0%, 5v = 100%
    • Fuel Temp: 0v = -40F, 5v = 257F (-40-125C)
    • Fuel Press: 0v = 0 PSI, 5v = 145.04 PSI (0-10 BAR)
    • Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda)
  • 52mm (2 1/6�) diameter gauge body with interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates included
  • No PC required for configuration
  • Bosch LSU 4.9 wideband O2 sensor
  • Patented DirectDigital wideband sensor control, 100% digital wideband air/fuel ratio technology!
  • Wideband Oxygen Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
  • Ability to calibrate Oxygen sensor for maximum accuracy
  • Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)

SKU INNOVATE-3903PNP
Brand INNOVATE MOTORSPORTS
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.200m
