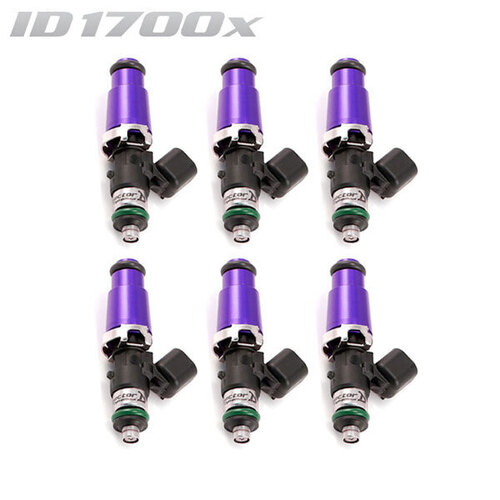

ID1700-XDS Injectors Set of 6, 60mm Length, 14mm Purple Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Holden V6/Porsche 993/996/997.1/BMW E36
ID1700-XDS Injectors Set of 6, 60mm Length, 14mm Purple Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Holden V6/Porsche 993/996/997.1/BMW E36
SKU: id-1700.60.14.14.6

ID1700-XDS Injectors Set of 6, 60mm Length, 14mm Purple Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Holden V6/Porsche 993/996/997.1/BMW E36

ID1700-XDS

$2,957.90


In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


Item: ID1700-XDS Injectors Set of 6, 60mm Length, 14mm Purple Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Holden V6/Porsche 993/996/997.1/BMW E36

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.



Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.

Specifications

  • Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
  • Electrical Connector: USCAR

Vehicle Fitment

Vehicle Fitment is provided as a guide only to narrow down results. Please check listing for any additional information (measurements, specifications, additional notes) which may affect compatibility or ask for assistance.
1993 BMW M3 E36
1993 Porsche 911 Carrera 993
1993 Toyota Supra JZA80
1994 BMW M3 E36
1994 Porsche 911 Carrera 993
1994 Toyota Supra JZA80
1995 BMW M3 E36
1995 Porsche 911 Carrera 993
1995 Toyota Supra JZA80
1996 BMW M3 E36
1996 Porsche 911 Carrera 993
1996 Toyota Supra JZA80
1997 BMW M3 E36
1997 Holden Commodore VT
1997 Porsche 911 Carrera 993
1997 Toyota Supra JZA80
1998 BMW M3 E36
1998 Holden Commodore VT
1998 Porsche 911 Carrera 993
1998 Porsche 911 Carrera 996
1998 Porsche 911 Turbo 996
1998 Toyota Supra JZA80
1999 BMW M3 E36
1999 Holden Commodore VT
1999 Porsche 911 Carrera 996
1999 Porsche 911 Turbo 996
1999 Toyota Supra JZA80
2000 BMW M3 E36
2000 Holden Commodore VX
2000 Porsche 911 Carrera 996
2000 Porsche 911 Turbo 996
2000 Toyota Supra JZA80
2001 Holden Commodore VX
2001 Porsche 911 Carrera 996
2001 Porsche 911 Turbo 996
2001 Toyota Supra JZA80
2002 Holden Commodore VY
2002 Porsche 911 Carrera 996
2002 Porsche 911 Turbo 996
2002 Toyota Supra JZA80
2003 Holden Commodore VY
2003 Porsche 911 Carrera 996
2003 Porsche 911 Turbo 996
2004 Holden Commodore VZ
2004 Porsche 911 Carrera 996
2004 Porsche 911 Carrera 997.1
2004 Porsche 911 Turbo 996
2005 Holden Commodore VZ
2005 Porsche 911 Carrera 996
2005 Porsche 911 Carrera 997.1
2005 Porsche 911 Turbo 996
2006 Holden Commodore VZ
2006 Porsche 911 Carrera 997.1
2007 Porsche 911 Carrera 997.1
2007 Porsche 911 Turbo 997.1
2008 Porsche 911 Carrera 997.1
2008 Porsche 911 Turbo 997.1
2009 Porsche 911 Carrera 997.1
2009 Porsche 911 Turbo 997.1

SKU id-1700.60.14.14.6
Brand INJECTOR DYNAMICS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.200m
