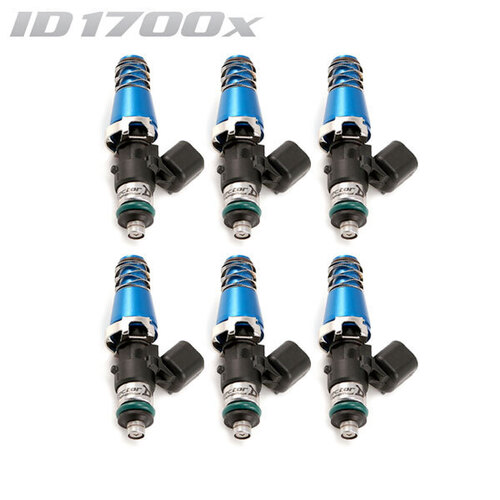

ID1700-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Nissan 300ZX Z32
ID1700-XDS
In Stock
Description
Item: ID1700-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Nissan 300ZX Z32
The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
- Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
- Electrical Connector: USCAR
Vehicle Fitment
1989 Nissan 300ZX Z32 |
1990 Nissan 300ZX Z32 |
1991 Nissan 300ZX Z32 |
1992 Nissan 300ZX Z32 |
1993 Nissan 300ZX Z32 |
1993 Toyota Supra JZA80 |
1994 Nissan 300ZX Z32 |
1994 Toyota Supra JZA80 |
1995 Nissan 300ZX Z32 |
1995 Toyota Supra JZA80 |
1996 Nissan 300ZX Z32 |
1996 Toyota Supra JZA80 |
1997 Toyota Supra JZA80 |
1998 Toyota Supra JZA80 |
1999 Toyota Supra JZA80 |
2000 Toyota Supra JZA80 |
2001 Toyota Supra JZA80 |
2002 Toyota Supra JZA80 |
Specifications
SKU | id-1700.60.11.14.6 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
