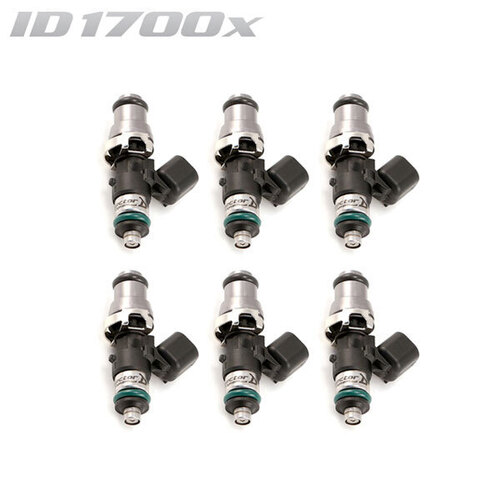

ID1700-XDS Injectors Set of 6, 48mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring - Ford XR6 FG/Nissan 350Z/Porsche GT2 996/997.1 TT/BMW M3 E46
ID1700-XDS
In Stock
Description
Item: ID1700-XDS Injectors Set of 6, 48mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring - Ford XR6 FG/Nissan 350Z/Porsche GT2 996/997.1 TT/BMW M3 E46
The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
- Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
- Electrical Connector: USCAR
Vehicle Fitment
2001 BMW M3 E46 |
2001 Porsche 911 GT2 996 |
2002 BMW M3 E46 |
2002 Nissan 350Z Z33 |
2002 Porsche 911 GT2 996 |
2003 BMW M3 E46 |
2003 Nissan 350Z Z33 |
2003 Porsche 911 GT2 996 |
2004 BMW M3 E46 |
2004 Nissan 350Z Z33 |
2004 Porsche 911 GT2 996 |
2005 BMW M3 E46 |
2005 Nissan 350Z Z33 |
2005 Porsche 911 GT2 996 |
2006 BMW M3 E46 |
2006 Nissan 350Z Z33 |
2007 BMW M3 E46 |
2007 Nissan 350Z Z33 |
2008 Ford Falcon XR6 FG |
2008 Ford FPV F6 FG |
2008 Nissan 350Z Z33 |
2008 Porsche 911 GT2 997.1 |
2009 Ford Falcon XR6 FG |
2009 Ford FPV F6 FG |
2009 Nissan 350Z Z33 |
2009 Porsche 911 GT2 997.1 |
2010 Ford Falcon XR6 FG |
2010 Ford FPV F6 FG |
2011 Ford Falcon XR6 FG |
2011 Ford FPV F6 FG |
2011 Porsche 911 GT2RS 997.1 |
2012 Ford Falcon XR6 FG |
2012 Ford FPV F6 FG |
2013 Ford Falcon XR6 FG |
2013 Ford FPV F6 FG |
2014 Ford Falcon XR6 FGX |
2014 Ford FPV F6 FG |
2015 Ford Falcon XR6 FGX |
2016 Ford Falcon XR6 FGX |
Specifications
SKU | id-1700.48.14.14.6 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
