SKU: id-1700.60.11.14.4

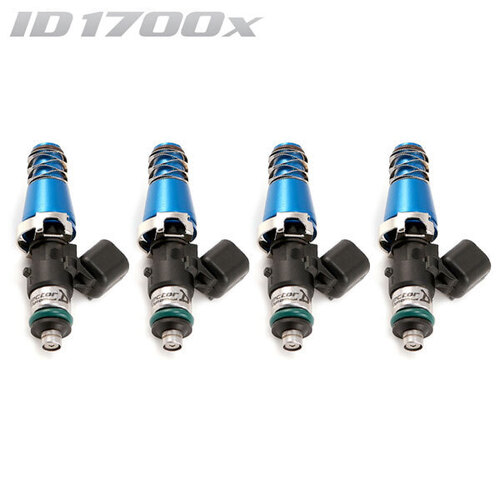

ID1700-XDS Injectors Set of 4, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring - Nissan SR20/Toyota 3S-GTE/Honda B-Series/D-Series

ID1700-XDS

$1,977.80

or 4 payments of $494.45 with Info



In Stock


Calculate Shipping



Australia wide rate - $20.00 (ETA: 3 days)

Description

Item: ID1700-XDS Injectors Set of 4, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring - Nissan SR20/Toyota 3S-GTE/Honda B-Series/D-Series

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.



Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.

Specifications

  • Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
  • Electrical Connector: USCAR

Vehicle Fitment

Vehicle Fitment is provided as a guide only to narrow down results. Please check listing for any additional information (measurements, specifications, additional notes) which may affect compatibility or ask for assistance.
1987 Honda Civic ED/EF
1988 Honda Civic ED/EF
1988 Nissan Silvia/180SX S13
1989 Honda Civic ED/EF
1989 Honda Integra DA
1989 Nissan Silvia/180SX S13
1989 Toyota Celica ST18
1990 Honda Accord CB/CD
1990 Honda Civic ED/EF
1990 Honda Integra DA
1990 Nissan Silvia/180SX S13
1990 Toyota Celica ST18
1990 Toyota MR2 SW20
1991 Honda Accord CB/CD
1991 Honda Civic ED/EF
1991 Honda Civic EG
1991 Honda Integra DA
1991 Nissan Silvia/180SX S13
1991 Toyota Celica ST18
1991 Toyota MR2 SW20
1992 Honda Accord CB/CD
1992 Honda Civic EG
1992 Honda Integra DA
1992 Nissan Silvia/180SX S13
1992 Toyota Celica ST18
1992 Toyota MR2 SW20
1993 Honda Accord CB/CD
1993 Honda Civic EG
1993 Honda Integra DA
1993 Nissan 200SX S14
1993 Nissan Silvia/180SX S13
1993 Toyota Celica ST18
1993 Toyota MR2 SW20
1994 Honda Accord CB/CD
1994 Honda Civic EG
1994 Honda Integra DC2
1994 Nissan 180SX S13
1994 Nissan 200SX S14
1994 Toyota Celica ST20
1994 Toyota MR2 SW20
1995 Honda Accord CB/CD
1995 Honda Civic EG
1995 Honda Integra DC2
1995 Nissan 180SX S13
1995 Nissan 200SX S14
1995 Toyota Celica ST20
1995 Toyota MR2 SW20
1996 Honda Accord CB/CD
1996 Honda Civic EK
1996 Honda Integra DC2
1996 Nissan 180SX S13
1996 Nissan 200SX S14
1996 Toyota Celica ST20
1996 Toyota MR2 SW20
1997 Honda Accord CB/CD
1997 Honda Civic EK
1997 Honda Integra DC2
1997 Nissan 180SX S13
1997 Nissan 200SX S14
1997 Toyota Celica ST20
1997 Toyota MR2 SW20
1998 Honda Accord CG
1998 Honda Civic EK
1998 Honda Integra DC2
1998 Nissan 180SX S13
1998 Nissan 200SX S14
1998 Nissan 200SX S15
1998 Toyota Celica ST20
1998 Toyota MR2 SW20
1999 Honda Accord CG
1999 Honda Civic EK
1999 Honda Integra DC2
1999 Nissan 200SX S14
1999 Nissan 200SX S15
1999 Toyota Celica ST20
1999 Toyota MR2 SW20
2000 Honda Accord CG
2000 Honda Civic EK
2000 Honda Integra DC2
2000 Nissan 200SX S14
2000 Nissan 200SX S15
2001 Honda Accord CG
2001 Honda Integra DC2
2001 Nissan 200SX S15
2002 Honda Accord CG
2002 Nissan 200SX S15

Specifications

SKU id-1700.60.11.14.4
Brand INJECTOR DYNAMICS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.200m
