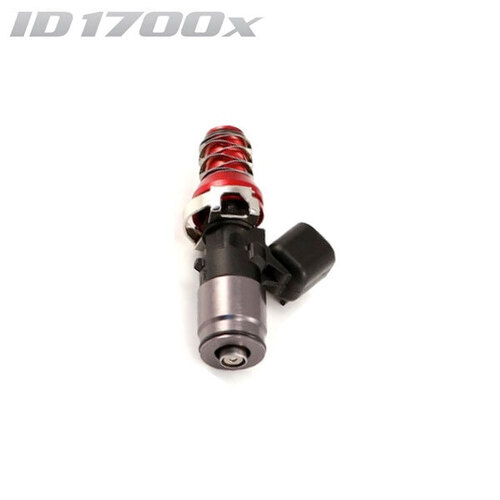

ID1700-XDS Injector Single, 48mm Length, 11mm Red Adaptor Top, WRX-16B Lower Adaptor
ID1700-XDS
Description
Item: ID1700-XDS Injector Single, 48mm Length, 11mm Red Adaptor Top, WRX-16B Lower Adaptor
The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
- Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
- Electrical Connector: USCAR
Vehicle Fitment
2001 Subaru STI GDB |
2001 Subaru WRX GDA/GGA |
2002 Subaru STI GDB |
2002 Subaru WRX GDA/GGA |
2003 Subaru Forester SG XT (Turbo) |
2003 Subaru STI GDB |
2003 Subaru WRX GDA/GGA |
2004 Subaru Forester SG XT (Turbo) |
2004 Subaru STI GDB |
2004 Subaru WRX GDA/GGA |
2005 Subaru Forester SG XT (Turbo) |
2005 Subaru STI GDB |
2005 Subaru WRX GDA/GGA |
2006 Subaru Forester SG XT (Turbo) |
2006 Subaru STI GDB |
2006 Subaru WRX GDA/GGA |
2007 Subaru Forester SG XT (Turbo) |
2007 Subaru Liberty BL/BP (Turbo) |
2007 Subaru STI GDB |
2007 Subaru WRX GDA/GGA |
2008 Subaru Forester SG XT (Turbo) |
2008 Subaru Forester SH XT (Turbo) |
2008 Subaru Liberty BL/BP (Turbo) |
2008 Subaru STI GVF/GRF |
2008 Subaru WRX GEE/GHE |
2009 Subaru Forester SH XT (Turbo) |
2009 Subaru Liberty BL/BP (Turbo) |
2009 Subaru STI GVF/GRF |
2009 Subaru WRX GEE/GHE |
2010 Subaru Forester SH XT (Turbo) |
2010 Subaru STI GVF/GRF |
2010 Subaru WRX GEE/GHE |
2011 Subaru Forester SH XT (Turbo) |
2011 Subaru STI GVF/GRF |
2011 Subaru WRX GVE/GRE |
2012 Subaru Forester SH XT (Turbo) |
2012 Subaru STI GVF/GRF |
2012 Subaru WRX GVE/GRE |
2013 Subaru Forester SH XT (Turbo) |
2013 Subaru STI GVF/GRF |
2013 Subaru WRX GVE/GRE |
2014 Subaru STI GVF/GRF |
2014 Subaru WRX GVE/GRE |
2015 Subaru STI VAB |
2016 Subaru STI VAB |
2017 Subaru STI VAB |
2018 Subaru STI VAB |
2019 Subaru STI VAB |
Specifications
SKU | id-1700.48.11.WRX |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
