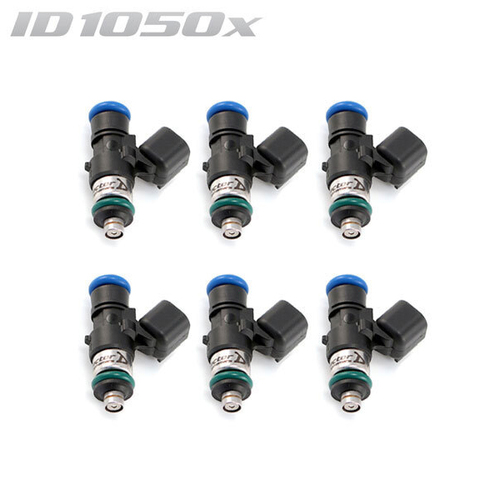

ID1050-XDS Injectors Set of 6, 34mm Length, 14mm Top O-Ring, 14mm Lower O-Ring
ID1050-XDS Injectors Set of 6, 34mm Length, 14mm Top O-Ring, 14mm Lower O-Ring
SKU: id-1050.34.14.14.6

ID1050-XDS Injectors Set of 6, 34mm Length, 14mm Top O-Ring, 14mm Lower O-Ring

ID1050-XDS

$1,372.80

or 4 payments of $343.20 with Info



In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


Item: ID1050-XDS Injectors Set of 6, 34mm Length, 14mm Top O-Ring, 14mm Lower O-Ring

The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.



Features:

  • Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
  • Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
  • Improved internal flow path increases output by 5% without sacrificing low flow performance.
  • Stronger magnetic circuit offers stable operation up to 10 bar.
  • Replaceable inlet filter extends service life.



Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.

Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Vehicle Fitment

Vehicle Fitment is provided as a guide only to narrow down results. Please check listing for any additional information (measurements, specifications, additional notes) which may affect compatibility or ask for assistance.

SKU id-1050.34.14.14.6
Brand INJECTOR DYNAMICS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.200m
