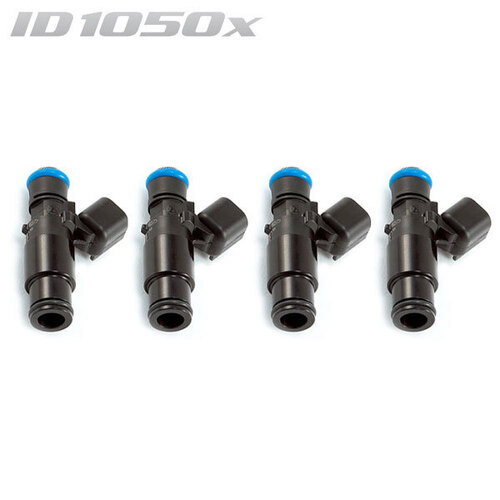

ID1050-XDS Injectors Set of 4, 48mm Length, 14mm Top O-Ring, 14mm Lower Adaptor - Mitsubishi Evo X
ID1050-XDS
Description
Item: ID1050-XDS Injectors Set of 4, 48mm Length, 14mm Top O-Ring, 14mm Lower Adaptor - Mitsubishi Evo X
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.
Features:
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
- Fuel Compatibility: Compatible With All Known Fuels
- Electrical Connector: USCAR
Vehicle Fitment
2008 Mitsubishi Evo X CZ4A |
2009 Mitsubishi Evo X CZ4A |
2010 Mitsubishi Evo X CZ4A |
2011 Mitsubishi Evo X CZ4A |
2012 Mitsubishi Evo X CZ4A |
2013 Mitsubishi Evo X CZ4A |
2014 Mitsubishi Evo X CZ4A |
2015 Mitsubishi Evo X CZ4A |
2016 Mitsubishi Evo X CZ4A |
2017 Mitsubishi Evo X CZ4A |
Specifications
SKU | id-1050.48.14.14B.4 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
