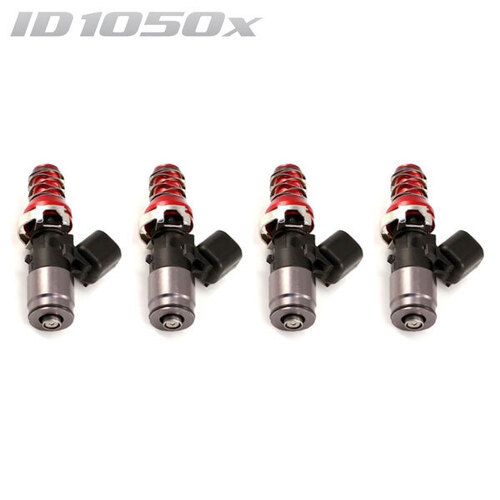

ID1050-XDS Injectors Set of 4, 48mm Length, 11mm Red Adaptor Top, WRX-16B Lower Adaptor - Subaru WRX/STI/Forester/Liberty 2001+
ID1050-XDS
Description
Item: ID1050-XDS Injectors Set of 4, 48mm Length, 11mm Red Adaptor Top, WRX-16B Lower Adaptor - Subaru WRX/STI/Forester/Liberty 2001+
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.
Features:
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
- Fuel Compatibility: Compatible With All Known Fuels
- Electrical Connector: USCAR
Vehicle Fitment
2001 Subaru STI GDB |
2001 Subaru WRX GDA/GGA |
2002 Subaru STI GDB |
2002 Subaru WRX GDA/GGA |
2003 Subaru Forester SG XT (Turbo) |
2003 Subaru STI GDB |
2003 Subaru WRX GDA/GGA |
2004 Subaru Forester SG XT (Turbo) |
2004 Subaru STI GDB |
2004 Subaru WRX GDA/GGA |
2005 Subaru Forester SG XT (Turbo) |
2005 Subaru STI GDB |
2005 Subaru WRX GDA/GGA |
2006 Subaru Forester SG XT (Turbo) |
2006 Subaru STI GDB |
2006 Subaru WRX GDA/GGA |
2007 Subaru Forester SG XT (Turbo) |
2007 Subaru Liberty BL/BP (Turbo) |
2007 Subaru STI GDB |
2007 Subaru WRX GDA/GGA |
2008 Subaru Forester SG XT (Turbo) |
2008 Subaru Forester SH XT (Turbo) |
2008 Subaru Liberty BL/BP (Turbo) |
2008 Subaru STI GVF/GRF |
2008 Subaru WRX GEE/GHE |
2009 Subaru Forester SH XT (Turbo) |
2009 Subaru Liberty BL/BP (Turbo) |
2009 Subaru STI GVF/GRF |
2009 Subaru WRX GEE/GHE |
2010 Subaru Forester SH XT (Turbo) |
2010 Subaru STI GVF/GRF |
2010 Subaru WRX GEE/GHE |
2011 Subaru Forester SH XT (Turbo) |
2011 Subaru STI GVF/GRF |
2011 Subaru WRX GVE/GRE |
2012 Subaru Forester SH XT (Turbo) |
2012 Subaru STI GVF/GRF |
2012 Subaru WRX GVE/GRE |
2013 Subaru Forester SH XT (Turbo) |
2013 Subaru STI GVF/GRF |
2013 Subaru WRX GVE/GRE |
2014 Subaru STI GVF/GRF |
2014 Subaru WRX GVE/GRE |
2015 Subaru STI VAB |
2016 Subaru STI VAB |
2017 Subaru STI VAB |
2018 Subaru STI VAB |
2019 Subaru STI VAB |
Specifications
SKU | id-1050.48.11.WRX.4 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
