SKU: IAG-ENG-3055W

IAG Performance Stage 5 Head - 'W' Casting w/GSC S3 Cams + New OEM Lifter Buckets for (STi 08-20)

IAG

$11,498.95


In Stock


Calculate Shipping



Australia wide rate - $60.00

Description

item: IAG Performance Stage 5 Head - 'W' Casting w/GSC S3 Cams + New OEM Lifter Buckets (STi 08-20)

Description

IAG's Stage 5 Cylinder Head Package utilizes a CNC porting program for the W25 heads that was developed over the past five years and tested on the most successful high-horsepower Subaru's. The ported head package starts with brand new W25 2008-19 STI OEM head castings directly from Subaru of America. The bare castings are visually inspected then fixtured into our in-house Centroid 5-axis CNC Machine, one of the most advanced precision engine machining equipment in the world. The Centroid CNC ports the intake and hard to reach exhaust "dog-leg" port runner. The benefit of CNC porting is not only an efficient way of machining the heads it also offers consistent port results that are hard to achieve by hand.

Once the Centroid completes the port process the heads undergo a cam clearance machining process that removes material from the lifter area where large duration cam profiles are known to contact the castings. Short after the heads are drilled to fit larger 1/2" or 14mm head studs which are commonly used in high horsepower builds. Next, the OEM guides are pressed out and replaced in favor of Ferrea Copper Bronze valve guides that are shaped to improve airflow.

Once all the new intake and exhaust guides are in place they are diamond honed in our honing station. The heads are then fixtured in our Serdi 3.0 Valve Guide and Seat Machine to cut all intake and exhaust seat with multi-angle valve job that suits the flow characteristics of Ferrea +1mm valves. At this point, the heads decks are resurfaced using our TS-3000 BlockMate that cuts the aluminum to a smooth even finish. After resurfacing, the heads are ultrasonically cleaned to remove debris and oils from the machining process. The heads are then reassembled using GSC Billet S3 camshafts designed for drag racing applications intending to make 750-1000 wheel horsepower. During final assembly, the cams are matched to Ferrea Dual Valve Springs and Titanium Retainers along with Ferrea valve stem seals then bench-lashed to a tolerance that is close to final specifications.

GSC Camshaft Specs:

S3 Billet Cam is intended for 750-1000WHP

7026S3 ADV Duration Duration @ 0.040" Peak Lift Center Line
Intake 282° 240° 11.50mm 130°
Exhaust 282° 240° 11.50mm 128°

Recommendations / Warranty:

  • Final lash will need to be set upon the long blocks assembly.
  • Assembly and professional installation recommended.
  • Workmanship/parts warranty will only be available for professionally installed cylinder heads.

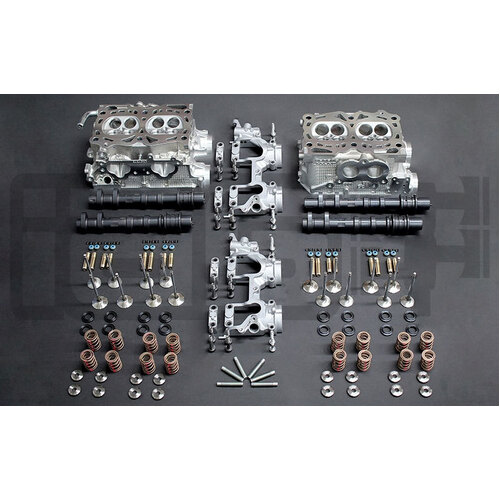

What's Included

  • (2) Brand New Subaru OEM W25 Cylinder Head Castings
  • (8) Ferrea 37mm (+1mm) Comp Plus Intake Valves
  • (8) Ferrea 33mm (+1mm) Comp Plus Exhaust Valves
  • (16) Ferrea Dual Valve Springs & Titanium Retainers
  • (16) Ferrea Copper / Bronze Valve Guides
  • (32) Ferrea Valve Keepers
  • (8) Ferrea 6mm Intake Valve Stem Seals
  • (8) Ferrea 6mm Exhaust Valve Stem Seals
  • (16) OEM Lifter Buckets
  • GSC S3 Billet Camshafts
  • IAG Performance CNC Porting
  • Multi-Angle Valve Job
  • Drilling for compatibility with ½” or 14mm Head Studs (please contact us)
  • Cam Clearancing
  • Resurface
  • Ultrasonic Cleaning
  • Bench Lashed

compatibility

  • 2008-2020 Subaru STI (With 'W' Head Casting)

Specifications

SKU IAG-ENG-3055W
Brand IAG
Shipping Weight 40.0000kg
Shipping Width 0.800m
Shipping Height 0.200m
Shipping Length 0.800m
