SKU: IAG-ENG-3050SC

IAG Performance Stage 5 Head - 'S' Casting w/Chamber Mod, Excluding Cams/Lifters for (WRX 01-05)

IAG

$10,254.95


In Stock


Calculate Shipping



Australia wide rate - $60.00

Description

item: IAG Performance Stage 5 Head - 'S' Casting w/Chamber Mod, Excluding Cams/Lifters (WRX 01-05)

Description

IAG's Stage 5 Cylinder Head Package utilizes a CNC porting program for the S20 heads that was developed over the past five years and tested on the most successful high-horsepower Subaru's. The ported head package starts with brand new S20 2002-05 WRX 2.0L OEM head castings directly from Subaru of America. The bare castings are visually inspected then fixtured into our in-house Centroid 5-axis CNC Machine, one of the most advanced precision engine machining equipment in the world. The Centroid CNC ports the intake and hard to reach exhaust "dog-leg" port runner. The benefit of CNC porting is not only an efficient way of machining the heads it also offers consistent port results that are hard to achieve by hand.

Once the Centroid completes the port process the heads receive our combustion chamber modification in which the shapes of the chamber are machined to reduce compression and improve the burn path. The heads then undergo a cam clearance machining process that removes material from the lifter area where large duration cam profiles are known to contact the castings. Short after the heads are drilled to fit larger 1/2" or 14mm head studs which are commonly used in high horsepower builds. Next, the OEM guides are pressed out and replaced in favor of Ferrea Copper / Bronze valve guides that offer greater heat dissipation, lubricity properties and are shaped to improve airflow.

Once all the new intake and exhaust guides are in place they are diamond honed in our honing station. The heads are then fixtured in our Serdi 3.0 Valve Guide and Seat Machine to cut all intake and exhaust seat with multi-angle valve job that suits the flow characteristics of Ferrea Comp Plus +1mm valves. At this point, the heads decks are resurfaced using our TS-3000 BlockMate that cuts the aluminum to a smooth even finish. Next, the heads are ultrasonically cleaned to remove debris and oils from the machining process. Finally, the heads are reassembled using Ferrea Dual Valve Springs and Titanium Retainers along with Ferrea intake and exhaust valve stem seals.

Additional Options:

  • IAG Combustion Chamber Modification Machining Included - If not required use listing IAG-ENG-3050S.

Recommendations / Warranty:

  • Assembly and professional installation recommended.
  • Workmanship/parts warranty will only be available for professionally installed cylinder heads.

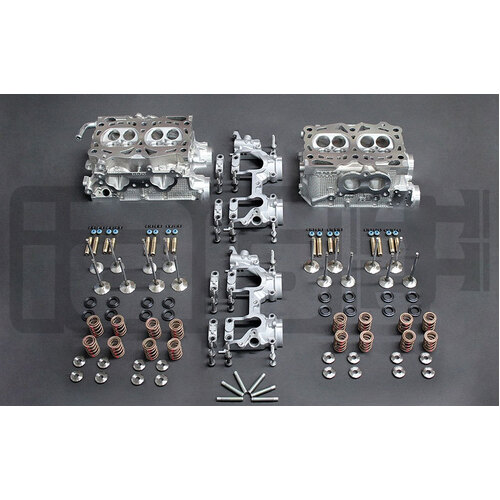

What's Included

  • (2) Brand New Subaru OEM S20 EJ20 Cylinder Head Castings
  • (8) Ferrea 37mm (+1mm) Comp Plus Intake Valves
  • (8) Ferrea 33mm (+1mm) Comp Plus Exhaust Valves
  • (16) Ferrea Dual Valve Springs & Titanium Retainers
  • (16) Ferrea Copper / Bronze Valve Guides
  • (32) Ferrea Valve Keepers
  • (8) Ferrea 6mm Intake Valve Stem Seals
  • (8) Ferrea 6mm Exhaust Valve Stem Seals
  • IAG Performance CNC Porting
  • Multi-Angle Valve Job
  • Drilling for compatibility with ½” or 14mm Head Studs (please contact us)
  • Cam Clearancing
  • Resurface
  • Ultrasonic Cleaning

compatibility

  • 2001-2005 Subaru WRX (With 'S' Head Casting)

Specifications

SKU IAG-ENG-3050SC
Brand IAG
Shipping Weight 40.0000kg
Shipping Width 0.800m
Shipping Height 0.200m
Shipping Length 0.800m
