IAG Performance Cooper Fire Ring Head Gasket for 11mm and 1/2" Studs - Single for (EJ25/EJ257)
IAG
Description

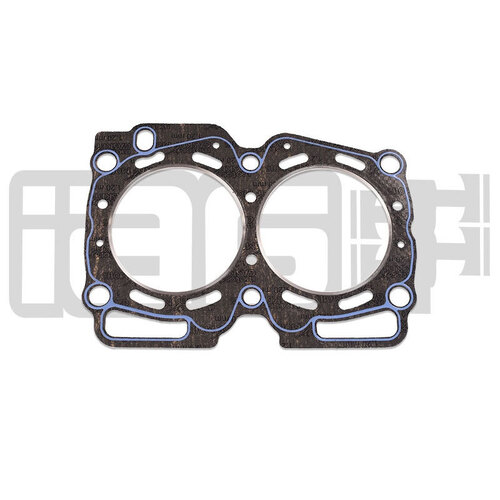

item: IAG Performance Cooper Fire Ring Head Gasket for 11mm and 1/2" Studs - Single (EJ25/EJ257)
Description
The IAG Performance Cooper ring head gasket is manufactured from an asbestos-free composite raw material and features silicone based beading applied to critical areas to improve sealing around all water and oil passages. What sets this gasket apart from others is the separate stainless steel rings surrounding the bore holes.
The rings assure maximum sealing for a turbocharged engine and the block and head do not require any special machining. The IAG Cooper ring gaskets are designed for high horsepower, high boost applications. The gaskets are not recommended for blocks or heads that are o-ringed. The gaskets are sold individually, (x2) are required per long block.
Install Notes:
- Groove side of the ring faces up toward the head
- Do not use coatings or sprays on the gaskets
- If a block or cylinder head was previously o-ringed the groove must be filled and resurfaced before using this type of gasket.
Specifications
- Composite Material
- Stainless Steel Ring (AISI304)
- Silicone Beading
- 100mm Bore
- .051" Thickness
- Intended for High Horsepower, High Boost applications
- Works with 11mm and 1/2" head studs
- Gaskets Sold Individually
What's Included
- (1) Head Gasket
compatibility
- 2001-2014 Subaru WRX (EJ25)
- 2002-2018 Subaru STI (EJ25)
- 2004-2009 Subaru Liberty GT (EJ25)
- 2003-2013 Subaru Forester XT (EJ25)
Specifications
SKU | IAG-ENG-1731S |
Brand | IAG |
Shipping Weight | 18.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.500m |
