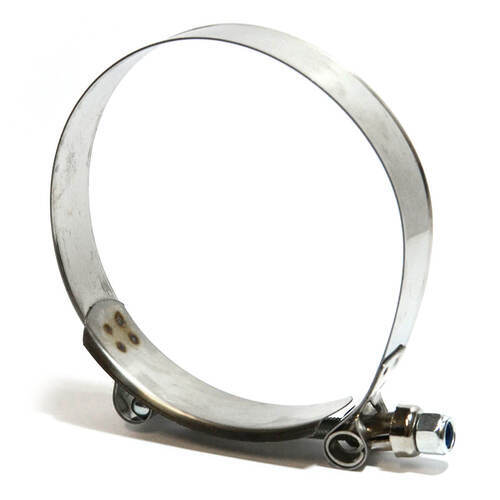

Hose Clamp T-Bolt Stainless Steel 83mm
Perfect seal for our Silicone Hoses
Description
ITEM: Hose Clamp T-Bolt Stainless Steel 83mm
PRODUCT INFORMATION
SSHC83 - Hose Clamp T-Bolt Stainless Steel 83mm
Our SAAS Stainless Steel T-Bolt hose clamps are perfect for fixing our silicone hoses, and any hose that requires a non-pinch seal.
Features:
- Solid stainless steel band with a rolled edge and smooth underside
- Corrosion resistant
- Reduces the risk of hose pinch and damage
- Wide band provides superior sealing
- Perfect for high pressure and heavy duty applications where large tightening forces are required
- Available in a wide variety of popular sizes
Clamp Selection Guide:
When using a SAAS SSHC Stainless Clamp with our Silicone Hose, ensure you match to the OD of the Silicone Hose. Silicone Hose is graduated based on the ID of the hose, for example, a 76mm hose as an ID of 76mm, however it will have an OD of approximately 86mm. A SAAS SSHC76 clamp is designed for 76mm ID hoses, but has an opening range of 80-90mm to allow for the OD size of the hose.
Following sizes available
Part No | Fits Hose OD Range mm | Inches |
---|---|---|
SSHC45 | 47mm - 57mm | 1 7/8"- 2 1/4" |
SSHC51 | 54mm - 64mm | 2 1/8" - 2 1/2" |
SSHC57 | 60mm - 70mm | 2 3/8" - 2 3/4" |
SSHC64 | 66mm - 76mm | 2 5/8" - 3" |
SSHC70 | 73mm - 83mm | 2 7/8" - 3 3/8" |
SSHC76 | 80mm - 90mm | 3 1/4" - 3 1/2" |
SSHC83 | 86mm - 96mm | 3 3/8" - 3 3/4" |
SSHC89 | 95mm - 105mm | 3 3/4" - 4 1/8" |
SSHC95 | 100mm - 115mm | 4" - 4 1/2" |
SSHC102 | 105mm - 120mm | 4 1/8" - 4 3/4" |
* Please note that size ranges and conversions are approximate measures and provided as a guide only
SHIPPING DETAILS
SKU | SSHC83 |
Barcode | 9348391001543 |
Length | 180mm |
Width | 150mm |
Height | 30mm |
Cubic | 0.0008m2 |
Weight | 0.10kg |
Specifications
SKU | SAAS-SSHC83 |
Brand | SAAS |
Shipping Weight | 5.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.300m |
Shipping Length | 0.300m |
