HKS SUPER SQV - SEQUENTIAL BLOW OFF VALVE KIT (R35 GTR)
71008-AN029
Description
DESCRIPTION
HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. The Super SQV will support new generations of turbocharged vehicles.
Construction:
- High Quality Aluminum Die-Cast Body: Silver-coated aluminum die-cast body. Combines the ultimate in looks and durability in the engine compartment.
- High Stiffness Metal Die-Cast Valve: Secondary valve main portion is made of die cast metal. Reliable operation with beautiful looking.
- Triple Fin design produces "Super Sound": Triple Fins set at the center of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.
Operation:
- 1.Pull-Type Relief Valve Operation: The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.
- 2.Primary Valve (Small): Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.
- 3.Secondary Valve (Large): This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.
Dual Valve Structure, Sequential System:
- At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.
SUPER SQV4 VEHICLE SPECIFIC KIT:
Parts necessary for installation are included. SSQV4 can be easily installed on a vehicle with this kit. Circulation Adapter is Included. A triple fin and replacing type circulation adapter are included for a vehicle to install. These parts are not included in the universal kit. Using this recirculation adapter allows suction return by fabricating the return piping.

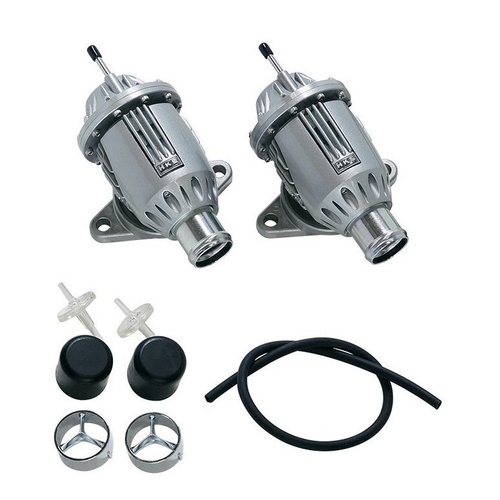

WHAT’S INCLUDED
- (2) HKS SQV BOVs
- (2) Triple Fin Sections
- (2) Recirculation Fittings
- (2) Block-Off Plugs
- (2) Vacuum Line Filters
- Vacuum Hose
Specifications
SKU | 71008-AN029 |
Brand | HKS |
Shipping Weight | 3.0000kg |
