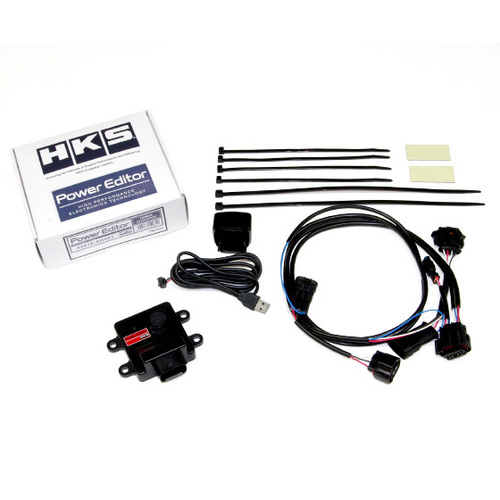

Item:HKS Power Editor fpr Honda Civic Type-R FK8 17+

Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electric or negative pressure control type actuators.

Outline:

• Easy coupler-on installation to increase the boost pressure.
• Boost pressure increase data is preset to Power Editor.
• The reset connector is included. Connecting the connector can reset the data to its original after installing this product.
• Boost pressure increase data is preset to Power Editor.
  • Easy Writer is NOT included in the product. Download Easy Writer from HKS website.
  • The provided USB connecting harness is required to connect with a PC.

Main Functions:

• Boost pressure increase for turbo vehicle：To increase the boost pressure of a stock vehicle.
• Status Confirmation LED：To check the unit status by LED.
• Edit the boost increase data : To edit the preset data to user's original data to increase the boost pressure.
  • PC with Windows10, 8.1, 8, or 7 is required.

Features:

• Installing this Power Editor between the pressure sensor and pressure sensor harness can activate the boost increase function of this product.
• Easy Writer for Power Editor is available to edit the preset data.
• To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
• Replacing Power Editor with the provided reset connector can reset the data to the original and easily check the difference.
• Ideal for both MT & AT vehicle lightly tuned with aftermarket exhaust system, air cleaner, and/or catalyzer.

Performance:

• Stock (Actual Value): 247.5kw (336.5ps) / 435.5Nm (44.4kgf・m)
• With Power Editor: 259.2kW (352.5ps) / 472.7Nm (48.2kgf・m)

Notes:

• This product is designed to be installed to a stock vehicle or vehicle that HKS products are installed.
• This product is to increase the boost pressure of the vehicle with stock turbine and not designed to use with the vehicle the upgraded turbo.
• This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.
