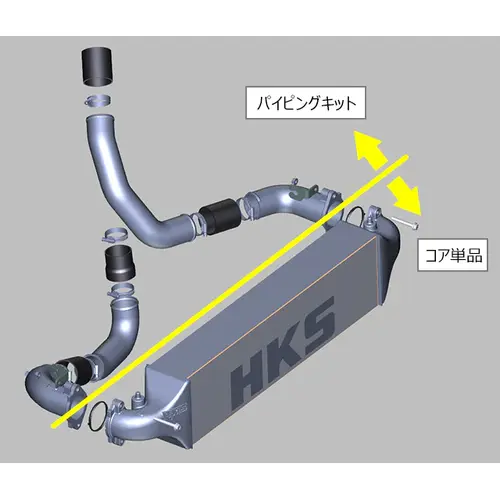

Brand HKS Series Name R TYPE INTERCOOLER Product Number 13001-AH008 Compatible Car HONDA CIVIC TYPE-R FL5 Compatible Engine K20C Product Description YEAR MODEL: 22/09- ■ Features: Intercooler: The core area has been increased by 22.4% compared to the original, expanding the area exposed to the wind while driving and improving cooling performance. By increasing the core capacity, it can handle everything from boost up to turbo replacement. This layout allows installation even with genuine piping. ■ Kit configuration [Core only]: Intercooler Core; Masking sheet for logo spray [Piping kit]: Aluminum bent pipe (IN/OUT); Cast pipe (IN/OUT); Silicone Hose; Bracket (IN/OUT); Hose clamp; Dedicated bolts and nuts CORE SPECIFICATION: Core size: 695 x 178 x 100; Core specifications: 10 fins, 9 tubes; Tank: Aluminum casting PERFORMANCE: Output: 245kW (333PS/6500rpm); Torque: 449.5Nm (45.9kgm)/3260rpm Cooling performance: I/C outlet 30.3°C (7000rpm); Cooling efficiency: 88% (7000rpm) Remarks Core only. NOTES: *1. To install the intercooler assembly, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. There is no modification to the reinforcement. *2. To install the piping, it is necessary to cut the bracket on the vehicle body. *3. For the FULL KIT, the measures (*1) and (*2) are required. Notes Images are for illustration purpose only. Actual product may vary.
