Brand: HKS

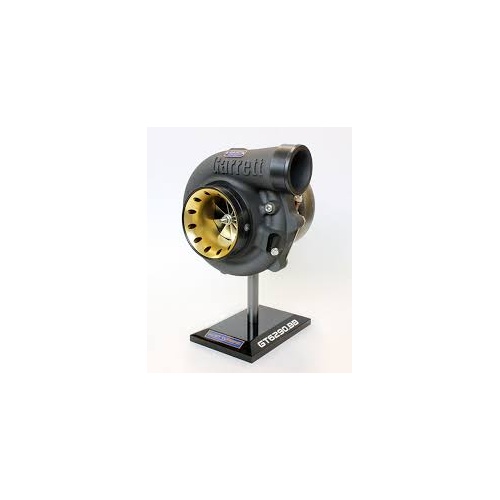

Product: GT Turbine Series Turbocharger GT6290 BB V Band - A/R 0.61
Part Num: 14001-AK061

SPECIFICATIONS:
Series: GT (GT6290 BB)
Turbine Type: Ball Bearing Type
Target Power Range (ps): 900

Compressor Housing Finish: Highly Corrosion Resistant Anodized Aluminum Coating Matt Black
Ported Shroud Finish: Alumite Champagne Gold
Ported Shroud Shape: Bell Mouth
Compressor Wheel:
- Intake Diameter (mm): 68
- Outlet Diameter (mm): 84
- Trim: 85
Turbine Wheel:
- Outlet Diameter (mm): 62
- Outer Diameter (mm): 68
- Trim: 84
Compressor Housing (mm):
- Intake Diameter (mm): 101.6
- Outer Diameter (mm): 63.5
- A/R: 0.75
Exhaust Housing (mm):
- Turbo Flange Type (IN): V Band
- Turbo Flange Type (Out): V Band
- Material: Stainless Steel
- A/R: 0.61
