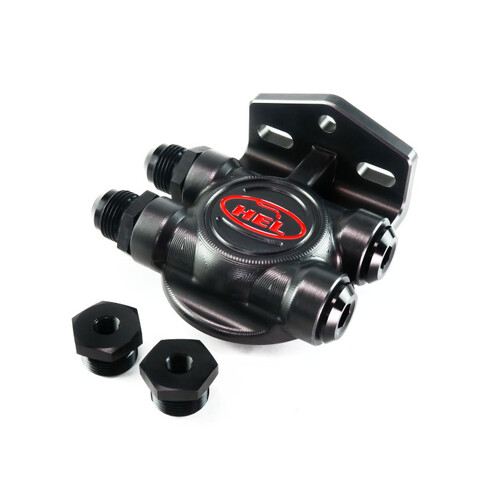

HEL Oil Filter Relocation Remote Head

Welcome to the HEL Performance range of high-quality, dependable and unrivalled oil system components. Our widely embraced, race-winning products have not only secured victories on the race track but have also been rigorously tested on the open road.

What sets us apart is simple yet significant; we handle the entire CNC machining process in-house for our complete range of oil system components. This gives us full control over the manufacturing process, leading to exceptional quality and faultless products. This commitment guarantees longevity and unwavering durability, even when used in the most demanding and challenging environments.

The HEL Performance oil filter relocation remote head is the ultimate solution to enhance the convenience and accessibility of your spin-on style oil filter. When working with tight fitting engine swaps and compact engine bays, especially in all-wheel-drive and rear-wheel-drive engine conversions, our remote head allows you to mount your oil filter to a preferred location as well as speeding up the process during oil changes and servicing.

To provide maximum flexibility, we've incorporated four M22 x 1.5 threaded inlet and outlet ports into the head, which can easily be adapted with M22 x 1.5 to -8 (AN08) or -10 (AN10) male adapters, ensuring compatibility with a wide range of AN hose and fittings. This design allows for the effortless routing of oil, granting you the option to both feed and return oil from either the left or right side, or transversely across the head. If required, you can utilise the excess ports to house a sensor by using our very own M22 x 1.5 - 1/8" NPT adapter (available to purchase separately). We offer two versions of centre bolt thread to accommodate most commonly used spin-on style oil filters, M20 x 1.5 or 3/4"-16 UNF and is suitable for all oil filters with an o-ring diameter of 56mm (2.20") to 72mm (2.83").

Designed as a universal product, our remote head can be mounted on various bulkheads, chassis components and bespoke panels thanks to its compact design. To determine if it's the right fit for your application, please refer to our technical drawings which can be found in the downloadable user manual.

Please note, the HEL Oil Filter Relocation Take Off Plate has been designed to be used in conjunction with this remote head.

Specifications - Remote Head

Please see our oil system spare parts and accessories range for replacement thermostats, o-rings and other spares.

What's Included

• 1x HEL Oil Filter Relocation Remote Head
• 1x Threaded Centre Bolt
• 2x M22 x 1.5 Port Plugs
