Optimised specifically for 2 rotor engines, the Sprint RE is an entry-level ECU offering great value for money along with many features available on the more advanced ECUs.
FEATURES:
? Windows 2000, XP, Vista compatible software
? Real time programming, instant hesitation free adjustment while engine is running
? Fully user definable 16 x 16 mapping
? Tuning via Volumetric Efficiency (VE), Injection time
? Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
? USB and CAN Communication Port
? Custom sensor calibaration allows for most factory sensors to be used
? 2 x User programmable output
TRIGGER PATTERNS:
? Mazda Rotary Multi-tooth 24 and 2
? Mazda Rotary RX8
TYPICAL APPLICATIONS:
? 2 Rotor Engines ¨C 2nd Generation RX7 (FC3S)/Turbo II, 3rd Generation RX7 (FD3S) and RX8 (SE3P)
? Normally Aspirated or forced induction
? Load sensing by throttle position or manifold pressure (MAP)
? Sequential Injection
? Distributor ignition systems or multi-coil systems
DOWNLOADS:
? Software and Firmware
? Fitting Guides and Wiring
? Base Maps
RELATED VIDEOS:
? Sprint RE Overview
? How to choose your ECU

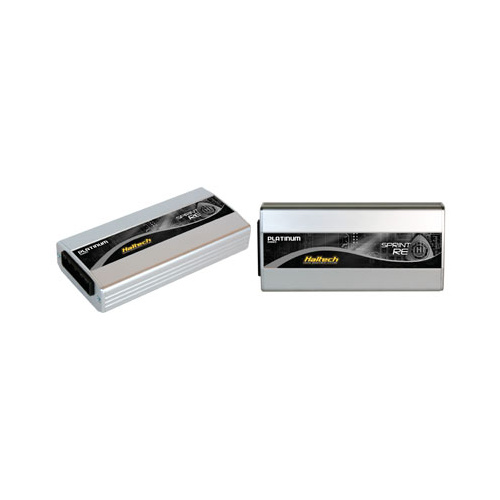

Platinum RE ECU
Part Number: HT-050900
Includes: Sprint RE ECU, USB coms cable and a Haltech Resource CD.
