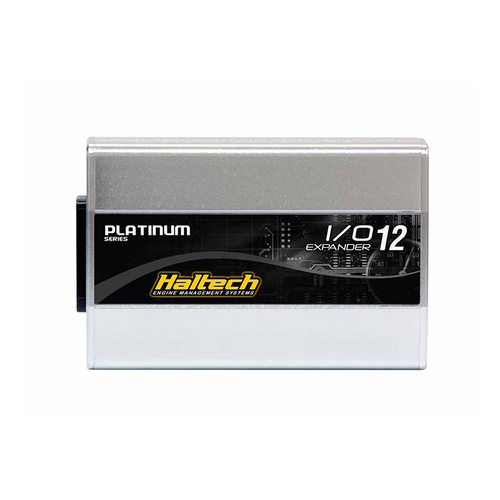

HALTECH IO 12 Expander 12 Channel(CAN ID Box A) HT-059900
HALTECH IO 12 Expander 12 Channel(CAN ID Box A) HT-059900
SKU: HT-059900

HALTECH IO 12 Expander 12 Channel(CAN ID Box A) HT-059900

Part Number: HT-059900

AUD$740.85

or 4 payments of AUD$185.21 with Info



In Stock


Calculate Shipping


Australia wide rate - AUD$25.00 (ETA: 3 days)


Item: HALTECH IO 12 Expander - 12 Channel(CAN ID - Box A) HT-059900

Category: CAN Expansion

As supplied this product is direct Plug 'n' Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or mutiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU please order a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in a suitable length for your specific installation. If you are connecting this product with a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB please order a Haltech CAN Cable (8 pin White Tyco to 8 pin White Tyco) in a suitable length for your specific installation. in a suitable length for your specific installation. Cables are available from 75mm (3") to 3600mm (144") Please see the product Quick Start Guide for further information on selecting the correct colour CAN cable for your specific installation.

OUTPUTS: 4 Digital Pulsed Outputs (DPO) 4 Digital Pulsed Inputs (DPI) 4 Analogue Voltage Inputs (AVI)

INCLUDES: IO 12 Expander, Elite CAN cable DTM-4 to 8 pin Black Tyco - 300mm (12")

NOTES: Combine two IO 12 Expanders with different CAN ID's (Box A or B) for up to 24 additional channels (subject to ECU compatibility)

SKU HT-059900
Brand HALTECH
Shipping Weight 5.0000kg
Shipping Width 0.350m
Shipping Height 0.200m
Shipping Length 0.150m
