HALTECH Elite Race Expansion Module (REM) HT-152000
HALTECH Elite Race Expansion Module (REM) HT-152000
SKU: HT-152000

HALTECH Elite Race Expansion Module (REM) HT-152000

Part Number: HT-152000

$4,349.41


In Stock


Calculate Shipping


Australia wide rate - $25.00 (ETA: 3 days)


Item: HALTECH Elite Race Expansion Module (REM) HT-152000

Category: Universal ECU Kits

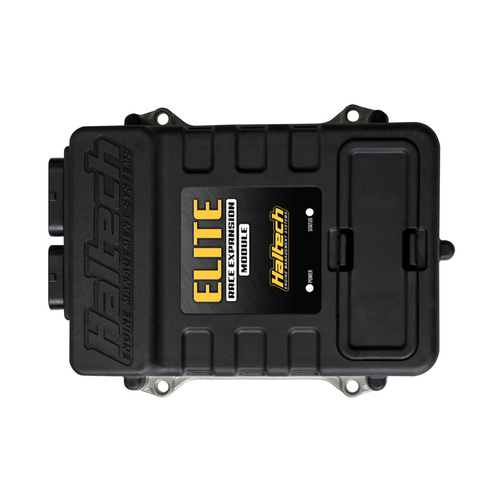

The Race Expansion Module (REM) is used in conjunction with the Haltech Elite 2500 ECU to offer extra Input and Output functionally as well as Advanced Torque Management. Using the REM with the Elite 2500 allows sequential staged injection of up to 16 injectors, and will drive up to 32 injectors. The REM also has additional Analogue and Digital inputs which can be used for data acquisition as well as additional Digital outputs.
  • 8 x Fuel Injection Outputs
  • 4 x Digital Pulsed Outputs
  • 4 x Digital Pulsed Outputs
  • 4 x Digital Pulsed Inputs
  • 8 x Analogue Voltage Inputs (with selectable Pull up)
  • 2 x Buffered Analogue Voltage Inputs suitable for O2 Sensors
  • 1 x Haltech CAN Connection
  • 2 x System Synchronisation Pulsed Inputs
  • 1 x System Synchronisation Watchdog Output
  • 1 x Injection Relay Control Output
  • 1 x 8VDC Injection Relay Conditioning Circuit Supply
  • Advanced Torque Management
  • 8 x Fuel Injection Outputs
  • I/O Expansion (Available when not using I/O Expander 12)
  • Waterproof Case

SKU HT-152000
Brand HALTECH
Shipping Weight 5.0000kg
Shipping Width 0.350m
Shipping Height 0.200m
Shipping Length 0.150m
