SKU: HT-142001

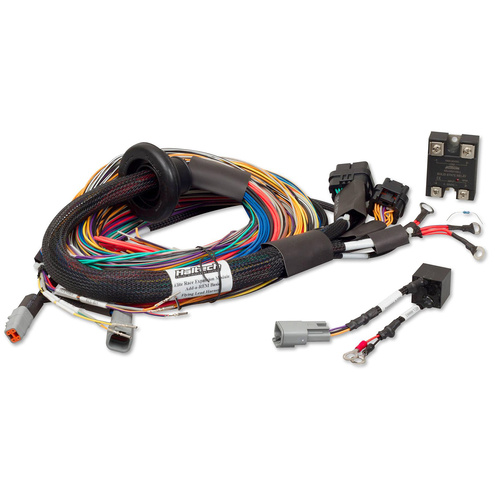

HALTECH Elite Race Expansion Module (REM) HT-142001
Part Number: HT-142001
Description
Item: HALTECH Elite Race Expansion Module (REM) 16Injector Universal Upgrade Wire-in Harness HT-142001
Category: Elite ECU Harnesses
The fastest and most cost effective start to building your custom your race car or engine conversion harness.
- coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.
- wiring diagram is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
- harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
- programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.
LENGTH: 2.5m (8')
LENGTH: 2.5m (8')
OUTPUTS: Up to 8 injectors and auxillary I/O.
SUITS: Universal 1 - 12 cylinder or 2-4 rotor applications. Up to 16 sequential injector upgrade.
INCLUDES: Universal upgrade wire-in harness with 75A SSR, USB programming cable and USB software key.
NOTES: Used to add an Elite REM to an exisiting Elite 2500 installation. DBW function not available when used in combination with a REM. 8 individual ignition coil ready when used with optional HT-130306, HT-130311, HT-130312 or HT-130313.
Specifications
SKU | HT-142001 |
Brand | HALTECH |
Shipping Weight | 5.0000kg |
Shipping Width | 0.350m |
Shipping Height | 0.200m |
Shipping Length | 0.150m |
