HALTECH Elite 2000+ FOR GM GEN III LS1 & LS6 non DBW HT-151260
Part Number: HT-151260
In Stock
Description

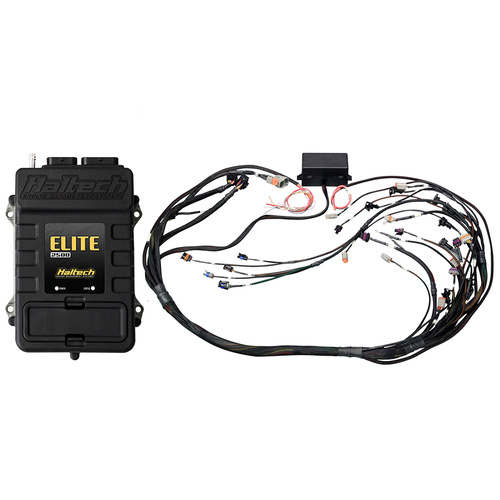

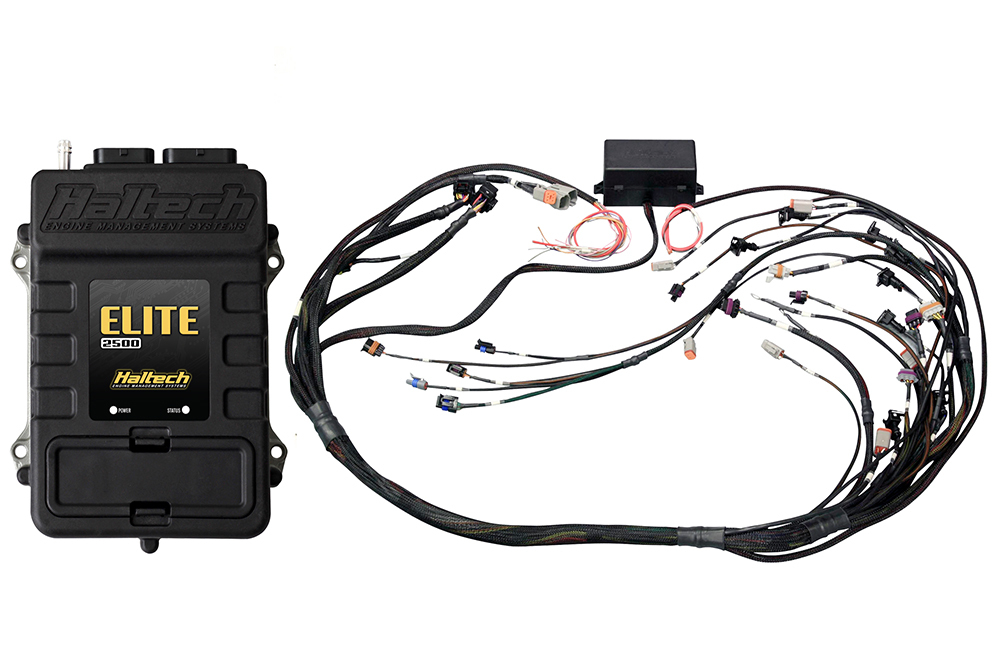

Item: HALTECH Elite 2000 + GM GEN III LS1 & LS6 non DBWTerminated Harness Kit HT-151260
Category: Terminated Engine Harness ECU Kits
- efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
- quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
- guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
- Supports 1 to 12 Cylinder engines
- 2 to 4 Rotor engines
- Normally aspirated or forced induction
- Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
- Staged, Sequential, semi sequential, batch or multipoint injection patterns
- Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
- Connect to a wide range of display dashes and expansion devices via CAN.
- Waterproof Case (With Pocket Cover Fitted)
- 8 x Fuel Injection Outputs
- 8 x Ignition Outputs
- 10 x Digital Outputs
- 10 x Analogue Voltage Inputs
- 4 x Synchronised Pulsed Inputs
- 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor)
- 2 x Dedicated Engine Position Inputs with extensive trigger type support
- Up to 45 channels of Input & Output (I/O) expansion (via CAN)
- USB Laptop communication (Windows)
- ESP Calibration Software - Intuitive and easy to use
- harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
- programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.
- Low Impedance Injector control with Programmable Injector Peak and Hold Currents & Programmable peak time
- Flex Fuel Function (Direct sensor input) - Tune your engines boost, fuel and ignition by ethanol content
- Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol allows you to simply select your fuel type
- Closed Loop O2 Control - Dual bank control for precise tuning (With optional external CAN O2 Wideband Controller Kit)
- Dual Channel Knock Control - Synchronised to engine position with high speed digital filtering for accurate detection
- Variable cam control - Independently control up to 2 intake camshafts - Requires a minimum of 1 user defined input & output per variable cam
- Closed Loop Idle Speed Control with learning for consistent idle stability. Requires 1 or 2 user defined outputs (BAC type) or 4 user defined outputs (Stepper motor type)
- Long term learning (Auto tune) on fuel, cam, boost & idle control maps (up to 4D)
- On-board data logging - Up to 20 channels of logging at sample rates up to 50ms with 1MB of internal memory
- Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
- Dual CAN Bus communication for Haltech Dashes and expansion devices & OBDII (view live engine data & set and clear diagnostic trouble codes)
- Injection Stages 1 - 4 with individual injector flow rates per injector
- Anti-Lag/Rotational idle - for closed course racing, rally, circuit or drift. Build and maintain boost during closed throttle conditions
- Rolling Anti-Lag - lock to your current (or pre-set) RPM or road speed for roll racing or pit lane limiting
- Launch Control - Control your engines power delivery, RPM & boost for consistent performance at the start line
- Tuning Table Resolution up to 32 x 32
- Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
- tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, EGT or any channel for ultimate flexibility - Dual mapping is a thing of the past.
- Per Cylinder Tuning Correction - 3D
- Wideband O2 - Connect up to 7 Channels via CAN expansion devices
- Thermocouples/EGT (Exhaust Gas Temperature) - Connect up to 12 Channels via external CAN expansion devices
- Traction Control - Control your engines power output via mappable front vs rear axle or individual wheel speed slip
INJECTOR CONNECTOR: Bosch EV1 (as per factory)
INJECTOR CONNECTOR: Bosch EV1 (as per factory)
SUITS: Common US style Delco/Bosch GM alternator connector. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector. WBC1/2 CAN O2 Wideband Controller ready (Controller and sensor(s) not included) Manual transmission only.
INCLUDES: Elite 2000 ECU, engine harness with fuse block, firewall grommet, USB programming cable and USB Software Key.
NOTES: Please confirm your alternator connector (See the product quick start guide) and order an alternator adaptor if required. (HT-040090 or HT-040090) Ignition coils and harnesses are NOT included, Please order 8 x HT-020102 and/or HT-045657 if required.
Specifications
SKU | HT-151260 |
Brand | HALTECH |
Shipping Weight | 5.0000kg |
Shipping Width | 0.350m |
Shipping Height | 0.200m |
Shipping Length | 0.150m |
