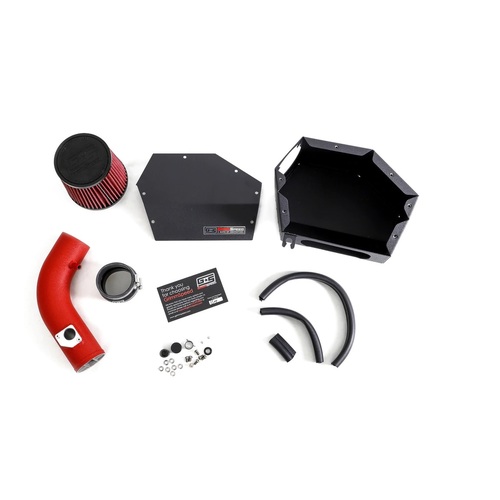

GrimmSpeed 060054 Cold-Air Intake for BRZ/86 Red

Design
The design of this intake started with months of hands-on research. Follow this link to see the extensive testing that we did on the factory intake setup pressure differentials. Follow this one to see the dyno testing that we did with the stock airbox in a number of different configurations. The entire development of the intake is chronicalled in great detail in our FT86Club thread where members helped with major design decisions. After the research stages and the determination that there was a gap in the intake market, we got to work with design. Using our FARO Arm, we were able to MAP the engine bay in 3D to ensure a perfect fitment. We used that working envelope to maximise performance by eliminating the 90 degree bend just before the airbox. We found that this contributed to decreased resistance, but also helped with accurate MAF readings. We placed the MAF sensor inside the airbox to ensure that the heat from the motor and headers didn't skew it's readings.

Testing
With a solid theoretical foundation and a number of prototypes, our engineers hit the dyno. Working with a very well respected tuner, they tested 26 different intake configurations with over 140 dyno pulls. Armed with a massive amount of data, design decisions were made and we moved forward into production. Check out our testing summary for Part 1, Part 2 and Part 3.

Materials
In true GrimmSpeed fashion, no corners were cut in the fabrication of each and every one of these intakes. The airbox is laser cut, CNC bent, riveted together and threaded inserts are installed before the entire assembly receives a heavy duty black wrinkle powdercoat. MAF flanges are CNC machined from 6061 aluminum and the intake tube is fabricated from custom bent tubing, made specifically for our application, to provide the perfect MAF diameter. The air straightener is laser cut from the same 6061 material and tumbled before the entire assembly is TIG welded by our expert welders. After welding, each tube is inspected and ported as needed to ensure maximum performance.

Performance
The intake provides gains in horsepower and torque across the entire rev range. This includes gains of 3-4 ftlbs in the "torque dip," and peak gains of 6 horsepower as measured at the wheels on a Dyno Dynamics dynomometer (reads lower than the common Dynojet). These gains are not achieved through MAF trickery either, as the air to fuel ratio remains nearly identical to the factory's. Additional gains in the top end can be achieved by modifying your factory snorkel (around 2whp) as shown.
