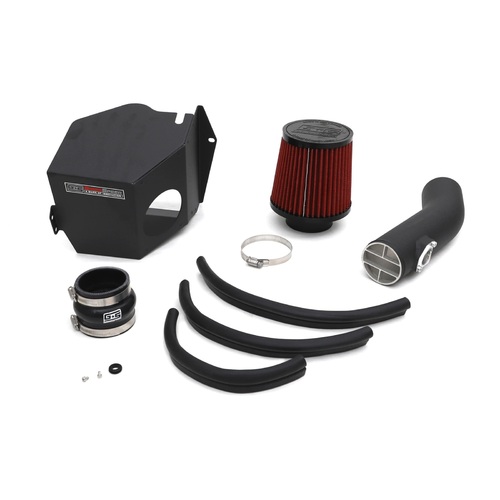

GrimmSpeed 060053 Cold Air Intake for WRX/STi 08-14/FXT 08-12 Red

Meticulous engineering meets elegant design.

For years you've been asking us for intakes, and for years we've silently worked to create a solution that sets itself apart from the rest. We examined and tested current offerings, and identified their shortcomings. We formed theories, and over months of testing designs we proved them. Combined with our advanced research and development program, we fully utilized our engineering resources to design and manufacture what we believe is the most comprehensive intake solution available for the 2008-2014 Subaru WRX and STI and the 2009-2013 Forester XT.

Design
Based on our testing and research, design requirements for this intake became simple. The MAF sensor must be protected from the heat of the engine bay for more accurate readings. The filter must not be close enough to the ground such that water/hydrolocking are a concern. The MAF sensor must be placed relative to the filter and air straightener, similar to the OEM airbox, so that airflow readings are consistent and reliable. The intake tube must be no longer than necessary with minimum bend angle, to reduce restriction. The heatshield must provide sealing between the induction area and the hot engine bay to keep air intake temperatures low. The GrimmSpeed intake shown here achieves each of these requirements and more. What is accomplished is a true hybrid of traditional Cold Air Intakes and Short Ram Intakes, with all the advantages and none of the compromises.
The two engineering studies above illustrate the importance of understanding how air moves within the entire intake system. The figure on the left shows how the GrimmSpeed intake design compares to other intake designs with respect to MAF placement and how that affects airflow readings. Since the MAF sensor samples the velocity of incoming air to measure flow in the center of the tube, having an accurate velocity profile at the sensor is the only way to accurately measure airflow. The figure on the right shows the importance of considering how air moves within the heat shield or box, prior to entering the filter. The GrimmSpeed heat shield geometry keeps air from collecting in sharp corners and 'feeds' the air filter uniformly. This uniform air distribution contributes to more accurate MAF readings, but also reduces filter restriction and increases time between filter cleanings due to even "filter loading." And while the airbox is doing it's job of increasing performance, it's also cleaning up the engine bay and looking good.

Materials
In true GrimmSpeed fashion, no corners were cut in the fabrication of each and every one of these intakes. The aluminum heat shield is laser cut, CNC bent and riveted together before receiving a heavy duty black texture powdercoat. MAF flanges are CNC machined from 6061 aluminum and the intake tube is fabricated from custom bent tubing, made specifically for our application, to provide the perfect MAF diameter. The air straightener is laser cut from the same 6061 material and tumbled before the entire assembly is TIG welded by our expert welders. After welding, each tube receives the same heavy duty powdercoat and is inspected and cleaned to ensure maximum performance and reliability.

Performance and Tuning
This intake was designed with tuners in mind! The consistency of the airflow through the MAF sensor makes this intake very predictable and is as easy to tune as the stock airbox. While pro-tuning is always recommended, the Cobb SF OTS AccessPort Map provides a safe temporary alternative. Dyno testing was completed on our 2012 WRX, equipped with a GrimmSpeed 3-Port EBCS, Catted Downpipe, Catless Uppipe and TMIC.
