Fuel Pump True Variable Speed Module w/ Fuel Cell Pickup Brushless Spur 18054
AEROMOTIVE fuel pump 18054
In Stock
Description
Description
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Additional information
Weight | 6.55 lbs |
---|---|
Dimensions | 10 x— 6 x— 6 in |
Mounting Configuration: In Tank
CARB or EFI | Power Adder | FUEL | Horsepower |
---|---|---|---|
EFI | Naturally Aspirated | Gas | 4800 |
EFI | Naturally Aspirated | E85 | 3360 |
EFI | Forced Induction | Gas | 3400 |
EFI | Forced Induction | E85 | 2380 |
CARB | Naturally Aspirated | Gas | 5400 |
CARB | Forced Induction | Gas | 3800 |
CARB | Naturally Aspirated | E85 | 3780 |
CARB | Forced Induction | E85 | 2400 |

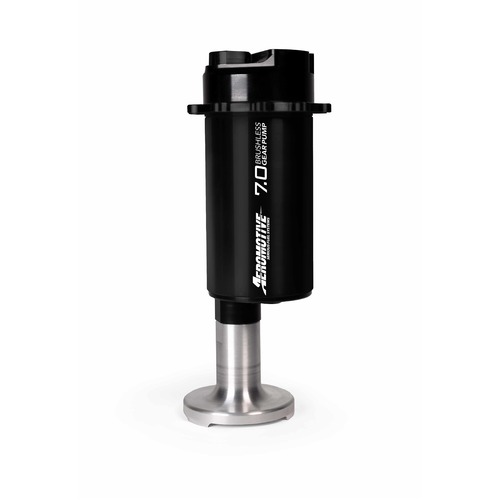

P/N 18054: Fuel Pump, True Variable Speed, Module, w/ Fuel Cell Pickup, Brushless Spur 7.0
Ground Shaking Performance - Advanced Technology
- Supports
Fuel injected engines:
- up to 4,800 FWHP on GAS - naturally aspirated
- up to 3,400 FWHP on GAS - forced air induction
- up to 3,360 FWHP on E85 - naturally aspirated
- up to 2,380 FWHP on E85 - forced air induction
Carbureted Engines:
- up to 5,400 FWHP on GAS - naturally aspirated
- up to 3,800 FWHP on GAS - forced air induction
- up to 3,780 FWHP on E85 - naturally aspirated
- up to 2,400 FWHP on E85 - forced air induction
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Specifications
SKU | aeromotive-18054 |
Brand | AEROMOTIVE |
Shipping Weight | 35.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
