Fuel Level Gauge 52mm White Muscle Series
Custom build your dash with Muscle
Description

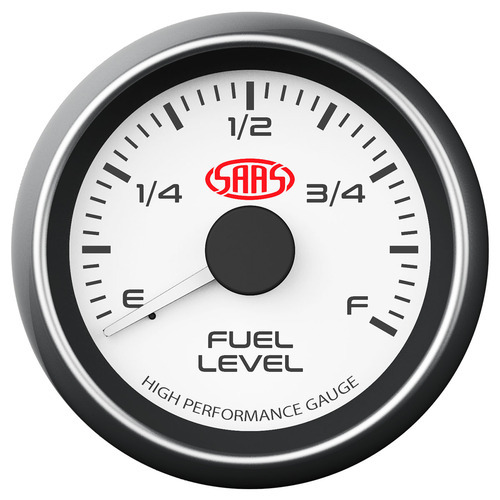

ITEM: Fuel Level Gauge 52mm White Muscle Series
PRODUCT INFORMATION
Fuel Level Gauge In Dash 52mm
SG-FL52W Fuel Level Gauge 52mm White Muscle Series
Features:
- 52mm / 2"
- Choose from 4 different LED lighting colours (Red, Green, Blue, White)
- Flashing indicator for low fuel level
- 9 calibration settings to read a variety of factory senders (see Vehicle Application below of download instructions for full range specs)
- Built in Ohm converter
- Designed to be used with either factory (pending resistance compatability) or SAAS SG31006 universal sender
What's Included :
- Fuel Level Gauge White
- Wiring Loom
- Mounting Bracket and fittings
| Preset | Manufacturer | Empty | Full |
|---|---|---|---|
| 1 | Ford (pre 1989), Chrysler | 73 | 10 |
| 2 | Ford (1989 on) | 16 | 158 |
| 3 | GM (pre 1965) | 0 | 30 |
| 4 | GM (1965 on) | 0 | 90 |
| 5 | Autometer Sender | 240 | 33 |
| 6 | Mitsubishi, Honda (pre 2001) | 107.5 | 7 |
| 7 | Honda (2001 on) | 131 | 12 |
| 8 | Generic Japanese Sender | 0 | 120 |
| 9 | SAAS Sender (SG31006) | 10 | 180 |
SPARES/SPECS
| Series | Muscle Series I |
| Diameter | 52mm / 2" |
| Range | 10 Ohm empty / 180 Ohm full |
| Lighting | LED Multi-select 4 Colour |
| Type | Electronic |
| Bracket Mounting | SG31005 |
| Fuel Level Sender | SG31006 |
| Wiring Loom | SG3190 |
| Download | Fitting Instructions |
SHIPPING DETAILS
| SKU | SG-FL52W |
| Barcode | 9348391023309 |
| Length | 150mm |
| Width | 125mm |
| Height | 95mm |
| Cubic | 0.0018m2 |
| Weight | 0.40kg |
Specifications
| SKU | SAAS-SG-FL52W |
| Brand | SAAS |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.300m |
| Shipping Length | 0.300m |
