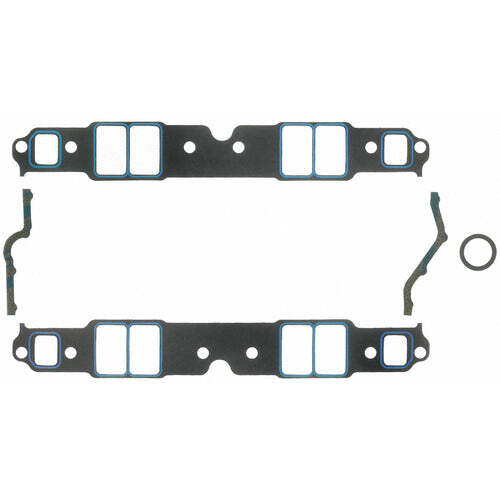

Item: Felpro 1207 Intake Gasket Set Suit SB Chev 262-400 Large Race Port

Fel-Pro ^® Performance MLS gaskets are composed of four to five stainless steel layers, along with proprietary coatings. Strategically-located sealing beads surround the combustion chamber and coolant passages, concentrating clamp load in the most critical areas.

Fel-Pro Performance Gaskets deliver reliable sealing under gruelling racing conditions

• Fel-Pro performance intake manifold gaskets have been tested with virtually all aftermarket cylinder head and intake manifold combinations.
• Performance intake manifold gaskets designed without a metal core, to allow engine builders to trim the gasket for exact fit on modified ports.
• No exhaust crossover openings or blocking shields
• Printoseal elastomeric sealing beads to provide extra sealing strength around the intake port.
• Not intended for use in emission controlled vehicles.
• For use with cast iron and aluminium cylinder heads

Part Type Intake Manifold Gasket Set
Mfg. GM Performance
Engine Family Chevrolet V8 Small Block
Engine Displacement 262, 265, 267, 283, 302, 305, 307, 327, 350, 400, 400 Race

Specifications
Port Size (in.) 1.38 x 2.28
Port Shape Rectangle
Thickness (in.) 0.060
Materials/Construction Composite w/Printoseal®
Application Notes Cast iron & aluminium heads w/conventional port and bolt
locations - Large race port
Product Notes No exhaust crossover openings or blocking shields; Gaskets fit
many O.E. and aftermarket heads; Brodix 12SP-S; Cutout for
Brodix water fitting incl.
