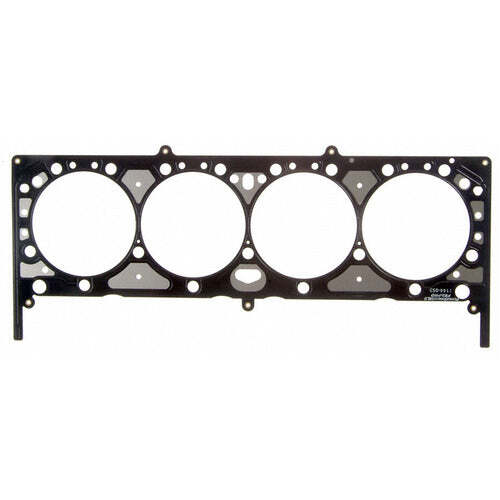

Fel-Pro Multi Layer Steel Head Gasket MLS Suit SB Chev 4.200\ Bore, .061\ Thick

Item: Fel-Pro Multi Layer Steel Head Gasket MLS Suit SB Chev 4.200\ Bore, .061\ Thick

Fel-Pro ^® Performance MLS gaskets are composed of four to five stainless steel layers, along with proprietary coatings. Strategically-located sealing beads surround the combustion chamber and coolant passages, concentrating clamp load in the most critical areas.

Fel-Pro Multi Layer Steel Head Gasket MLS Suit SB Chev 4.200 Bore, .061 Thick

Felpro 1144-061

Fel-Pro?« Performance Gaskets deliver reliable sealing under grueling racing conditions

• Fel-Pro?« Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
• The latest development in Fel-Pro Performance head gasket technology is the PermaTorque?«MLS (multi-layer steel) series.
• Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage.
• Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron
• Not intended for use in emission controlled vehicles.

FEL-PRO PERFORMANCE
Specifications

Part Type: Head Gasket
Mfg. GM Performance
Engine Family: Chevrolet V8 Small Block
Engine Displacement: 262, 265, 267, 283, 302, 305, 307, 327, 350, 400, 400 Race
Bore Size (in.): 4.200
Thickness (in.): 0.061
Combustion Chamber Volume (cc): 13.90
Combustion Seal Design: MLS bore bead
Materials/Construction: PermaTorque MLS?« multi-layer steel

Application Notes: Cast iron or aluminum heads - Suitable for marine applications Product Notes Can be used on 400 race Engs.; Steam holes for 400 Engs.; Street use; Can be used on aluminum blocks w/liners; Minimal brinelling of aluminum heads
