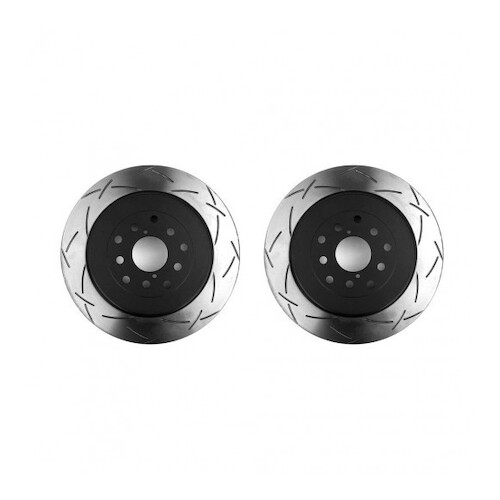

DBA DBA655S-10 Street Series 2x T2 Slotted Rear Rotors (STi 02-07/Liberty GT STi 06-09)

DBA DBA655S-10 Street Series 2x T2 Slotted Rear Rotors FOR STi 02-07/Liberty GT STi 06-09

Calculate Shipping

Australia wide rate - AUD$50.00

ITEM: DBA DBA655S-10 Street Series 2x T2 Slotted Rear Rotors (STi 02-07/Liberty GT STi 06-09)

Description

Important: Please see notes in compatibilty section regarding vehicle fitment.

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

Description	Advantage	Benefit
"*Kangaroo Paw – 144 diamond and tear drop pillar ventilation system**"	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
		Increased surface area resulting in greater heat dissipation
CBN (Cubic Boron Nitride) machine turned	Reduced DTV (Disc thickness variation) and parallelism	Less occurrence of brake shudder or brake pedal ‘judder’

Specifications

Disc Vent	V
Diameter [mm]	316
Height [mm]	67.5
Thickness [mm]	20
Minimum Thickness [mm]	18
Inner Diameter [mm]	58
Number of Holes	10
Weight [kg]	8
Pitch Circle Ø [mm]	100

What's Included

2 x DBA T2 Street Series Rear Rotors

compatibility

Note: Due to the variety of different brake packages sometimes used by manufacturers it is impossible to know exactly which car is fitted with which discs. The vehicle fitment information below is provided as a majority case only. Please measure factory discs and compare with the specifications above to confirm fitment.

Country	Make	Model	Year	Variant
Australia	SUBARU	IMPREZA, 2.0 WRX STi GD	12/2002-12/2007	2.0 STi-All-wheel Drive-Petrol (2-Piston Brembo)
Australia	SUBARU	IMPREZA, 2.5 WRX STi GD	10/2005-12/2007	2.5 STi-All-wheel Drive-Petrol (2-Piston Brembo)
Australia	SUBARU	LIBERTY, 2.5 STI AWD	9/2006-12/2009	2.5 STI AWD-All-wheel Drive-Petrol (2-Piston Brembo)
