DBA DBA2650S-10 T2 Street Series Front Rotors for 2015+ WRX/Liberty GT 04-09/10-12
Description

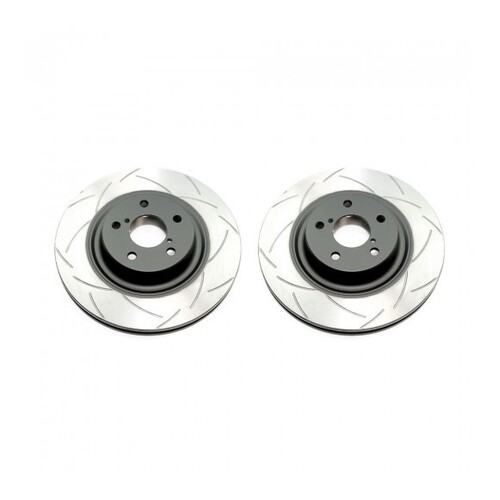

ITEM: DBA DBA2650S-10 T2 Street Series - Front Rotors (2015+ WRX/Liberty GT 04-09/10-12)
Description
Important: Please see notes in compatibilty section regarding vehicle fitment.
DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.
The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.
DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.
We recommend the T2 slot design for more intensive braking applications.
Description | Advantage | Benefit | |
---|---|---|---|
"Kangaroo Paw* – 144 diamond and tear drop pillar ventilation system" | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness | |
Increased surface area resulting in greater heat dissipation | |||
CBN (Cubic Boron Nitride) machine turned | Reduced DTV (Disc thickness variation) and parallelism | Less occurrence of brake shudder or brake pedal ‘judder’ |
Specifications
Diameter [mm] | 316 |
Height [mm] | 56.7 |
Thickness [mm] | 30 |
Minimum Thickness [mm] | 28 |
Inner Diameter [mm] | 58 |
Number of Holes | 10 |
Weight [kg] | 9.69 |
Pitch Circle Ø [mm] | 114.3 |
Disc Vent | V |
What's Included
-
2 x DBA T2 STreet Series Front Rotors
compatibility
Note: Due to the variety of different brake packages sometimes used by manufacturers it is impossible to know exactly which car is fitted with which discs. The vehicle fitment information below is provided as a majority case only. Please measure factory discs and compare with the specifications above to confirm fitment.
Country | Make | Model | Year | Variant |
---|---|---|---|---|
Australia | SUBARU | WRX, 2.0 | 2015-2018 | 2.0 T AWD-All-wheel Drive-Petrol |
Australia | SUBARU | LIBERTY, 2.0 GT | 2004-2006 | 2.0 T AWD-All-wheel Drive-Petrol |
Australia | SUBARU | LIBERTY, 2.5 GT | 2006-2009 | 2.5 T AWD-All-wheel Drive-Petrol |
Australia | SUBARU | LIBERTY, 2.5 GT | 2010-2014 | 2.5 T AWD-All-wheel Drive-Petrol |
Australia | SUBARU | FORESTER, 2.0 XT | 2014-2018 | 2.0 T AWD-All-wheel Drive-Petrol |
Australia | SUBARU | OUTBACK | 2015-2018 | 2.0/2.5/3.6 All-wheel Drive-Petrol |
