SKU: daviescraig-dc1017

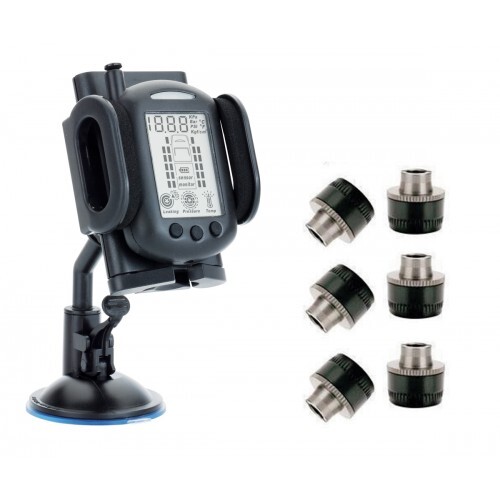

DAVIES CRAIG TYREGUARD 400 TPMS (6 Sensor) Kit (1017)

$299.65

or 4 payments of $74.91 with Info



In Stock


Calculate Shipping



Australia wide rate - $30.00 (ETA: 3 days)

Description

TYREGUARD 400 TPMS (6 SENSOR) KIT (PART #1017)

The Tyre / Tire Pressure Monitoring Systems (TPMS) is a universal fit product that allows for constant Monitoring of a vehicle’s Tyre / Tire Pressure & Temperature.  The system can receive wireless information from up to 22 wheels or 4 wheels with a pressure range of 0 to 145 psi and operating distance of 16 meters with the use of a booster or 8 meters without.

*Note: the kit comes with 6 sensors only. We also have the following kits:

  • 8 sensor kit (part #1019)
  • 4 sensor kit (Part #1015)
  • Additional sensors available in packs of 2 (Part #1016) or individually (Part #1011)

 After programming the ideal psi for each tire into the monitor, a transmitter is attached to each wheel’s valve stem in sequence. Various Levels of warnings are issued for pressure changes (under & over), high temperatures and low battery status.

Alarm Notifications:

  1. Low pressure level 1: drop 15% below "Baseline pressure"
  2. Low Pressure level 2: Drop 25%
  3. Low Pressure level 3: Drop 50%
  4. High Pressure level: Rise 120% above "Baseline pressure"
  5. High temperature: Above 75 C



Information and Demonstration Video:





KIT COMPONENTS

MONITOR 1
BRACKET (MONITOR HOLDER) 1
12/ 24V - DC CIGARETTE LIGHTER ADAPTER 1
AC WALL CHARGER ADAPTOR 1
TYRE SENSORS  6
ANTI-THEFT LOCKING NUT & TOOL (SENSORS)  6
BATTERY (3V LITHIUM)  6
INSTRUCTION BOOK 1



 SPECIFICATIONS

SENSOR WORKING TEMPERATURE  -20C - 85C
SENSOR WORKING HUMIDITY  0 - 95%
SENSOR DIMENSIONS  23 X 21 X 21MM
SENSOR WEIGHT  9G
SENSOR BATTERY VOLTAGE  3v DC (CR1632)
PRESSURE MEASURE RANGE  0 – 145 PSI
PRESSURE MEASURE PRECISION  ±4.35 PSI
TEMPERATURE MEASURE RANGE - 20C - 85C
TEMPERATURE MEASURE PRECISION ±3C
MONITOR WORKING VOLTAGE 3V DC
SIGNAL TRANSMITTING FREQUENCY 433.92 MHz



TPMS Sensor Protective Tip

To help protect your vehicle’s Sensors and caps from stone damage & tapping on the wheel rim which may fracture the Sensor battery cradles,  a piece of ½” heater hose fits snugly over the cap and valve stem with the small amount of the cap protruding. This is a very economical and successful option to place on all Sensors. (See image below)



The Tyre / Tire Pressure Monitoring Systems (TPMS) is a universal fit product that allows for constant Monitoring of a vehicle’s Tire Pressure & Temperature.

Specifications

SKU daviescraig-dc1017
Brand DAVIES CRAIG
Shipping Weight 13.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.250m
