DAVIES CRAIG TYREGUARD 300 KIT (Android) (1060)

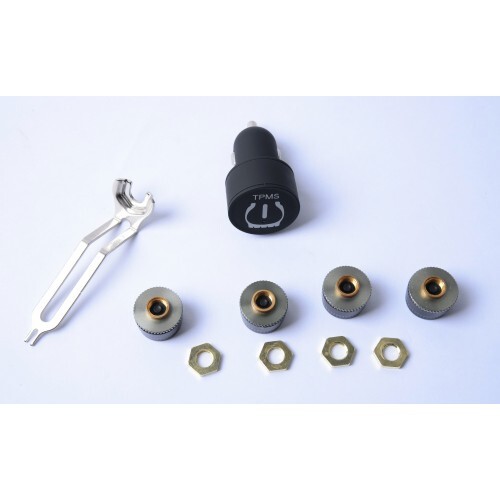

TYREGUARD 300 KIT (ANDROID) (PART #1060)

Monitor your vehicles tyre pressure and temperature in real time via your Android Smartphone communicating with Bluetooth Adapter included in this kit.

An alarm, both sound and flashing will be triggered within six seconds of an abnormal phenomenon occurring with your tyres, such as LOW or HIGH tyre pressure or leakage!

The system takes minutes to install and connects to your phone via the Bluetooth Adapter which plugs into your cigar lighter socket also known as automobile auxiliary power outlet. The adapter will provide visual and sound alarms should your tyres not be performing as required.

The tyre Sensors easily screw onto the valve and come with a locking nut for security.

Smartphone system requirement:
1) Android: 4.4 Version and above

• 2) iOS: 7.0 version and above

3) Support 4.0 BLE and above, IOS or Android operating system.

Smarthphone App Download

For Android: Download from:

• https://www.dropbox.com/s/0cjfrgxth7bzk0n/TPMS300-App.apk?dl=0
• http://www.tesee.com.cn/download.html

• *Note: for Android, some Wi-Fi service may block the address. Simply switch off Wi-Fi and download via Mobile Data or select desktop version from your browser settings. If still having issues, copy and paste the above link to your browser.

SPECIFICATIONS

• Automatic sound and flash alarm six seconds after tyres temperature becomes too high (exceed 75℃).
• Temperature Measure Precision：±3℃
• The waterproof and dustproof sensor can be used under awful condition.
• The tire's pressure monitoring criterion can be customized.
• The sensor's battery can be replaced freely. The normal lifespan of battery is about 2 years. When the capacity remained is insufficient, automatic sound and flash alarm shall remind user to replace the battery in time (Battery Model No: CR1632)
• Pressure measurement range：0 - 58PSI

  **The tyre pressure (baseline) can't be higher than 48psi because the High-Pressure Alert (Alarm) is at 120% of your tyre pressure (Baseline)

  • Example: Tyre at 48 PSI = High-Pressure Alert 120% = 57.6 PSI (Sensor Max is 58 PSI) if your tyres are set to any pressure above 48 PSI, this will cause the high-pressure alarm to constantly go off.
• Pressure Measure Precision: ±1.00PSI
• Suitable for passenger cars, can monitor four wheel-tires simultaneously.
• Four options for pressure unit: Kpa, PSI, Bar and Kgf/ cm2
• Sensors' operating temperature: -10℃ ~85 ℃, that of receiver and monitor: -20 ℃ ~60 ℃
• Sensor Weight: 8g±1g
• Signal Transmitting Frequency: 433.92MHz

ALARM NOTIFICATIONS

1. Low pressure level 1: drop 15% below Tyre (Baseline) pressure
2. Low Pressure level 2: Drop 25% below Tyre (Baseline) pressure
3. Low Pressure level 3: Drop 50% below Tyre (Baseline) pressure
4. High Pressure level: Rise 120% above Tyre (Baseline) pressure
5. High temperature: Above 75 C
