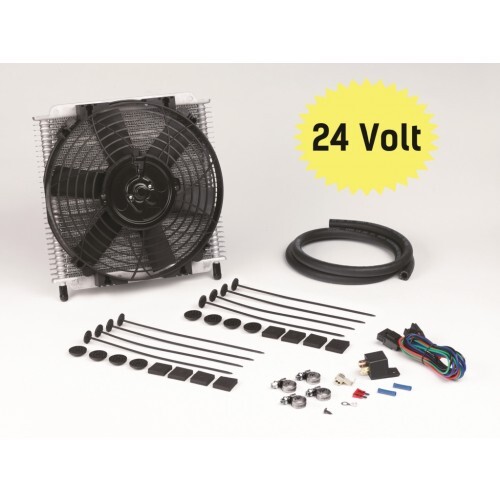

Transmission Oil Cooler 30 Plate & 10" Fan Combo 24 Volt (Part #692)

Enhance your automatic transmission cooling capabilities with the 30-plate heavy duty Hydra-Cool coupled with the 10” Slimline Thermatic Fan. Greater mounting flexibility with this combo pack enables you to further control and direct air flow through the Hydra Cool core. Plus, the Davies Craig 10” reverse polarity Slimline Thermatic Fan can be attached to this core to operate in either ‘push’ or ‘pull’ mode.

100% pressure tested at 150psi for quality assurance
33% more efficient than a comparable tube and fin design
Pre-drilled mounting plates for easy installation
Internal turbulation for efficient heat transfer
3/8” push-on fittings for quick and easy installation.

KIT CONTENTS

DESCRIPTION	UNITS
Hydra-Cool 30-plate transmission oil cooler	1
3/8” hose (1.4 meters)	1
Hose clamps	4
10” Electric Fan Kit (24V)	1
Quick Fit Kits – nylon ties x4	2
Instructions	1

RANGE & SPECIFICATIONS

Part #	Plates	Thickness mm	Overall		Core		Inlet/Outlet Size	Hose Size	Heat Transfer Rate (BTU/HR)
			Width mm	Height mm	Width mm	Height mm
Power Steering Cooler
1009	Tube & Fin	19	237	64	148	64	3/8” 9.5mm	3/8” (9.5mm) 1.2m	4,000

Ultra-Cool Transmission Oil Cooler (Tube & Fin)
401	Tube & Fin	20	326	128	245	128	3/8” 9.5mm	3/8” (9.5mm) 1.2m	9,000
403		20	326	191	246	191			10,800
404		20	395	191	316	191			12,000
Hydra-Cool Transmission Oil Cooler (Plate & Fin)
676	12	20	281	141	281	112	3/8” 9.5mm	3/8” (9.5mm) 1.4m	11,987
677	17	20	281	180	281	152			13,394
678	21	20	281	213	281	184			13,934
623	23	20	281	229	247	200			13,937
679	30	20	281	300	281	265			15,710
Transmission Oil Cooler & Fan Combo Kits
698 (12V)	21	76	281	213	281	184	3/8” 9.5mm	3/8” (9.5mm) 1.4m	13,934
699 (24V)
693 (12V)	23	76	281	213	247	200			13,937
694 (24V)
691 (12V)	30	76	281	300	281	265			15,710
692 (24V)
Accessories
1005	5/16" (8mm) Adaptor Kit - Transmission Oil Cooler to suit GM transmissions
1006	Transmission Oil Cooler Fitting Kit (6R80) Suits Ford Ranger and Mazda BT50
579	Quick Fit Kits
0444, 0445 0500	Digital Thermatic / Electric Fan Switches
