DAVIES CRAIG Transmission Oil Cooler 23 Plate & 8" Fan Combo 12V (693)
Description
Transmission Oil Cooler 23 Plate & 8" Fan Combo 12 Volt (Part #693)
Enhance your automatic transmission cooling capabilities with the 23-plate Hydra-Cool coupled with the 8” Thermatic Electric Fan 12 Volt. Greater mounting flexibility with this combo pack enables you to further control and direct air flow through the Hydra Cool core. Plus, the 8” reverse polarity Thermatic Electric Fan can be attached to this core to operate in either ‘push’ or ‘pull’ mode.
- 100% pressure tested at 150psi for quality assurance
- 33% more efficient than a comparable tube and fin design
- Pre-drilled mounting plates for easy installation
- Internal turbulation for efficient heat transfer
- 3/8” push-on fittings for quick and easy installation.

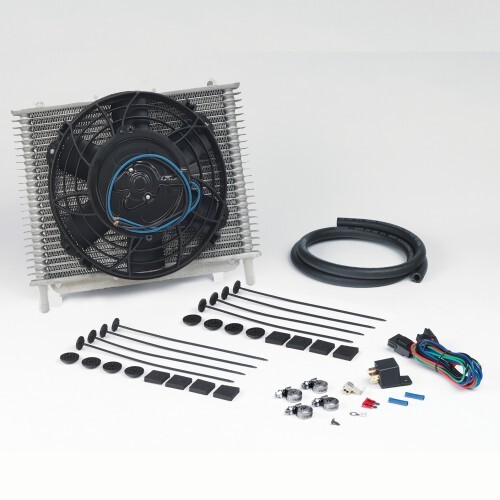

KIT CONTENTS
DESCRIPTION | UNITS |
Hydra-Cool 23-plate transmission oil cooler | 1 |
3/8” hose (1.4 meters) | 1 |
Hose clamps | 4 |
8” Electric Fan Kit (12V) | 1 |
Quick Fit Kits – nylon ties x4 | 2 |
Instructions | 1 |
RANGE & SPECIFICATIONS
Part # | Plates | Thickness | Overall | Core | Inlet/Outlet | Hose Size | Heat Transfer | |||
Width mm | Height mm | Width mm | Height mm | |||||||
Power Steering Cooler | ||||||||||
1009 | Tube | 19 | 237 | 64 | 148 | 64 | 3/8” | 3/8” (9.5mm) | 4,000 | |
| ||||||||||
Ultra-Cool Transmission Oil Cooler (Tube & Fin) | ||||||||||
401 | Tube | 20 | 326 | 128 | 245 | 128 | 3/8” | 3/8” (9.5mm) | 9,000 | |
403 | 20 | 326 | 191 | 246 | 191 | 10,800 | ||||
404 | 20 | 395 | 191 | 316 | 191 | 12,000 | ||||
Hydra-Cool Transmission Oil Cooler (Plate & Fin) | ||||||||||
676 | 12 | 20 | 281 | 141 | 281 | 112 | 3/8” | 3/8” (9.5mm) | 11,987 | |
677 | 17 | 20 | 281 | 180 | 281 | 152 | 13,394 | |||
678 | 21 | 20 | 281 | 213 | 281 | 184 | 13,934 | |||
623 | 23 | 20 | 281 | 229 | 247 | 200 | 13,937 | |||
679 | 30 | 20 | 281 | 300 | 281 | 265 | 15,710 | |||
Transmission Oil Cooler & Fan Combo Kits | ||||||||||
698 (12V) | 21 | 76 | 281 | 213 | 281 | 184 | 3/8” | 3/8” (9.5mm) | 13,934 | |
699 (24V) | ||||||||||
693 (12V) | 23 | 76 | 281 | 213 | 247 | 200 | 13,937 | |||
694 (24V) | ||||||||||
691 (12V) | 30 | 76 | 281 | 300 | 281 | 265 | 15,710 | |||
692 (24V) | ||||||||||
Accessories | ||||||||||
1005 | 5/16" (8mm) Adaptor Kit - Transmission Oil Cooler to suit GM transmissions | |||||||||
1006 | Transmission Oil Cooler Fitting Kit (6R80) Suits Ford Ranger and Mazda BT50 | |||||||||
579 | Quick Fit Kits | |||||||||
0444, 0445 | Digital Thermatic / Electric Fan Switches |
TRANSMISSION OIL COOLER SELECTION
APPLICATION |
| RECOMMENDED PART | |||||||||||||
Vehicle Type | Year of Manufacture | Engine Capacity |
| Medium Duty Part # | Heavy Duty Part # | ||||||||||
Sedan / Wagon | Up to 1990* | Up to 2.0 litre |
| 401 | 403 | ||||||||||
2.0 - 4.0 litre |
| 403 | 404 | ||||||||||||
4.0 litre + |
| 404 | 676 or 677 | ||||||||||||
Commercial | Up to 1990* | Up to 2.0 litre |
|
