TRANSMISSION OIL COOLER 17 PLATE HYDRA-COOL (PART #677)

The Hydra-Cool transmission oil cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. Hydra-Cool's unique plate & fin design allows for effective cooling, yet requires 33% less space. The Hydra-Cool's compact design is perfect for applications where available mounting space is limited.

100% pressure tested at 150psi for quality assurance
33% more efficient than a comparable tube and fin design
Pre-drilled mounting plates for easy installation
Internal tubulation for efficient heat transfer
3/8” (9 mm) push-on fittings for quick and easy installation

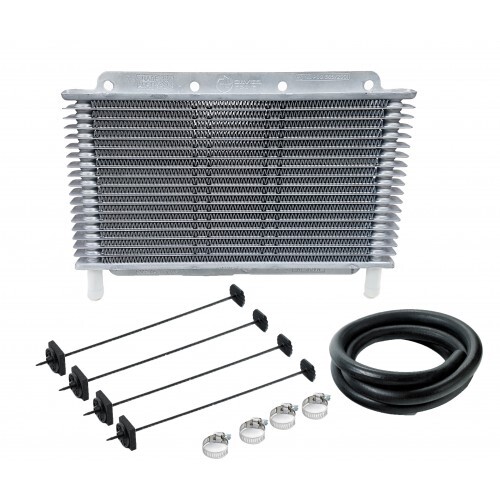

KIT CONTENTS

DESCRIPTION	UNITS
Hydra-Cool 17-plate transmission oil cooler	1
3/8” hose (1.4 meters)	1
Hose clamps	4
Quick Fit Kits – nylon ties x4	2
Instructions	1

RANGE & SPECIFICATIONS

Part #	Plates	Thickness mm	Overall		Core		Inlet/Outlet Size	Hose Size	Heat Transfer Rate (BTU/HR)
			Width mm	Height mm	Width mm	Height mm
Power Steering Cooler
1009	Tube & Fin	19	237	64	148	64	3/8” 9.5mm	3/8” (9.5mm) 1.2m	4,000

Ultra-Cool Transmission Oil Cooler (Tube & Fin)
401	Tube & Fin	20	326	128	245	128	3/8” 9.5mm	3/8” (9.5mm) 1.2m	9,000
403		20	326	191	246	191			10,800
404		20	395	191	316	191			12,000
Hydra-Cool Transmission Oil Cooler (Plate & Fin)
676	12	20	281	141	281	112	3/8” 9.5mm	3/8” (9.5mm) 1.4m	11,987
677	17	20	281	180	281	152			13,394
678	21	20	281	213	281	184			13,934
623	23	20	281	229	247	200			13,937
679	30	20	281	300	281	265			15,710
Transmission Oil Cooler & Fan Combo Kits
698 (12V)	21	76	281	213	281	184	3/8” 9.5mm	3/8” (9.5mm) 1.4m	13,934
699 (24V)
693 (12V)	23	76	281	213	247	200			13,937
694 (24V)
691 (12V)	30	76	281	300	281	265			15,710
692 (24V)
Accessories
1005	5/16" (8mm) Adaptor Kit - Transmission Oil Cooler to suit GM transmissions
1006	Transmission Oil Cooler Fitting Kit (6R80) Suits Ford Ranger and Mazda BT50
579	Quick Fit Kits
0444, 0445 0500	Digital Thermatic / Electric Fan Switches
