DAVIES CRAIG LS Series EWP Block Adapter Suits GM GEN III & IV SB & LSX (8670)
Description

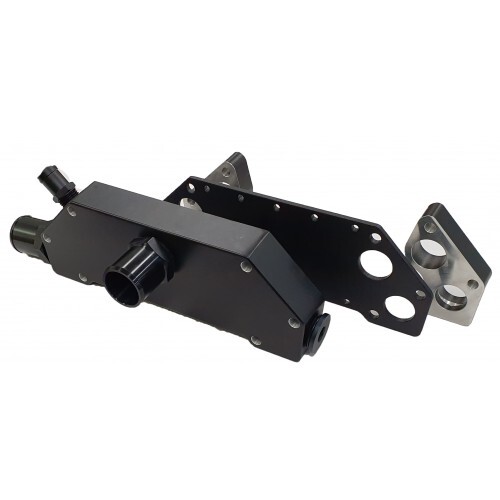

LS Series EWP Block Adapter Suits GM GEN III & IV SB & LSX (Part #8670)
Davies, Craig Pty Ltd announces the arrival of its New Plug and Play innovative Remote Electric Water Pump (EWP) Block Adapter to suit the General Motors LS Series family of engines.
This Adapter will supersede Part #8650 as it offers superior fitment options including:
- Ability to fit / located the EWP on the left or right side of the engine thus accommodating different engine configurations.
- Fitment to engines with Air Conditioning systems.
These iconic V8 engines are fast becoming the engine of choice for their lightweight and power. Now, the addition of the Davies Craig Electric Water Pump Block-Adapter Kit, coupled to one of the EWP115, or EWP130 or the EWP150 Electric Water Pump Combo Kit will free up the parasitic power loss inherent with mechanical water pumps!
Your Block Adapter is designed to replace the belt driven mechanical water pump and thermostat to complement the installation of Davies Craig remote-mounted Electric Water Pump (EWP).
Suitable for most 3rd and 4th Generation GM Small Block Engines Including LSX.
Kit Contents
Description | Units |
Adapter Block | 1 |
Adapter Back Plate | 1 |
Adapter Spacer | 2 |
Plate Gasket | 1 |
Spacer Gasket | 4 |
Outlet Fitting -16AN to 38mm (1 1/2") Hose | 1 |
Inlet fitting -12AN to 38mm (1 1/2") Hose | 1 |
Inlet Plug -12AN | 1 |
½” NPT 19mm (3/8”) Hose fitting | 2 |
Heater Return fitting | 1 |
Hose Clamps | 2 |
Screw Tensioner | 1 |
6PK1560 Belt | 1 |
M5 Flange Bolt | 11 |
Instructions | 1 |
You may require the below components to complete your installation.
ADDITONAL COMPONENTS (NOT SUPPLIED)
- Davies Craig EWP150 Combo #8970 (recommended)
- Top/Bottom Radiator Hose (Retained)
- Mechanical Water pump Bolts (Retained)
- Heater Hose and joiners (if required)
OPTIONAL COMPONENTS (AVAILABLE SEPARATELY)
- #1024 - Swivel Elbow, -16AN to 38mm (1 1/2") Hose
- #8505 - Elbow Hose, 38mm (1 1/2") ID - 90°
- #8700 - EWP Mounting Bracket
- Thermostat and inline housing
LS ENGINE FITMENT LISTING
Gen III/IV | Years Offered | Engine Code (vin code) | Size (L) | Block Features |
III | 1997-05 | LS1 (G) | 5.7 | |
III | 2001-05 | LS6 (S) | 5.7 | |
III | 1999-07 | LR4 (V) | 4.8 | |
III | 1999-07 | LM7 (T) | 5.3 | |
III | 2002-07 | L59 (Z) | 5.3 | |
III | 2003-04 | LM4 (P) | 5.3 | |
III | 2005-08 | L33 (B) | 5.3 | |
III | 1999-08 | LQ4 (U) | 6 | |
III | 2002-07 | LQ9 (N) | 6 | |
IV | 2008-17 | LS3 (W) | 6.2 | sodium exhaust valves |
IV | 2010-15 | L99 (J) | 6.2 | AFM, VVT, |
IV | 2009-11 | LSA (P) | 6.2 | |
IV | 2010-12 | L94 (F) | 6.2 | AFM, VVT |
IV | 2007-09 | L76 (Y) | 6 | AFM |
IV | 2011-16 | L77 (2) | 6 | AFM |
IV | 2010-17 | L96 (G) | 6 | VVT |
IV | 2009-10 | L98 (H) | 6 | L76 with AFM hardware removed |
IV | 2007-09 | LY2 (C) | 4.8 | no VVT |
IV | 2010-12 | L20 (A) | 4.8 | no AFM, VVT |
IV | 2005-09 | LH6 (M) | 5.3 | AFM, VVT* |
IV | 2007-09 | LY5 (J) | 5.3 | AFM, VVT* |
IV | 2008-12 | LMG (0) | 5.3 | AFM, VVT* |
IV | 2007-12 | LC9 (3) or (7) | 5.3 | AFM, VVT* |
IV | 2005-09 | LS4 (C) | 5.3 | AFM, FWD |
IV | 2008-09 | LH8 (L) | 5.3 | |
IV | 2007-08 | L92 (8) | 6.2 | VVT |
IV | 2009-12 | L9H (2) | 6.2 | VVT |
IV | 2005-07,09 | LS2 (U) | 6 | |
IV | 2007-10 | LY6 (K) | 6 | VVT |
IV | 2008-09 | LFA (5) | 6 | AFM |
IV | 2010-12 | LZ1 (J) | 6 | AFM, VVT |
IV | 2009-13 | LS9 (R/T) | 6.2 | sodium exhaust valves, 6600 redline, ZR1 |
IV | 2006-15 | LS7 (E) | 7 | 7000 redline, sodium exhaust valves |
IV | none | LSX376 | 6.2 | |
IV | none | LSX454 | 7.4 | |
IV | none | LSX454R | 7.4 | |
Note: block features are generally dependent upon the Generation but are not always built-in. typical features are AFM (Advanced Fuel Management), VVT (Variable Valve Train), Front Wheel Drive (FWD) and other improvements. features marked with an * indicate that only certain model years have that feature *Engines with VVT may need spacer to complete fitment. |
VEHICLE FITMENT LISTING
Gen III/IV | Years Offered | Engine Code (vin code) | Size (L) | Specifications
