DAVIES CRAIG Fan Clutch - Toyota Celica, Corona, Hilux (2554)
Description

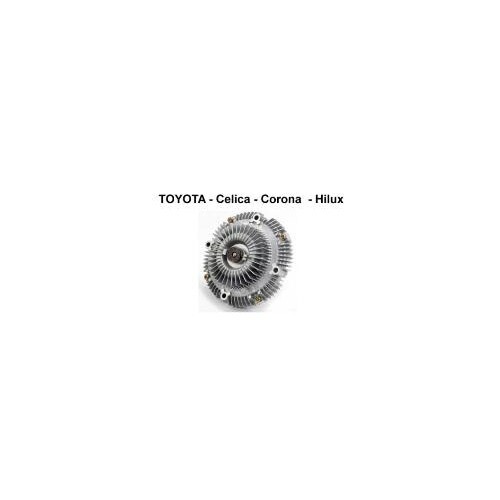

Fan Clutch - Toyota Celica, Corona, Hilux (2554)
Toyota Celica: 20R - 2.2L (1976-81), 22R - 2.4L (1979-85)
Toyota Corona: 20R - 2.2L (1976-82)
Toyota Hilux: R85, RN90 W.A/Con, 20R - 2.4L (1988-90), RN105, RN110 W.A/Con, 22R - 2.4L (1988-90)
Should you require further information, please refer to our selection guide or contact customer support on: TEL: +61 (3) 9369 1234
| SPECIFICATIONS | |
| TYPE | 1 |
| ROTATION | CW |
| OVERALL DIAMETER A | 148.6 |
| PILOT DIAMETER B | 16.0/24.4 |
| PILOT DEPTH C | 19.1 |
| FLANGE CIRCLE D | 78.0 |
| FAN MOUNT HEIGHT E | 49.8 |
| FAN BOLT CIRCLE F | 121.9 |
| FAN MOUNT DIAMETER G | 103.9 |
| OVERALL HEIGHT H | 62.2 |
| BOLT / NUT TYPE (FAN TO CLUTCH) | 6MM 1.0 NUT |
Specifications
| SKU | daviescraig-dc2554 |
| Brand | DAVIES CRAIG |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
