SKU: daviescraig-dc5102

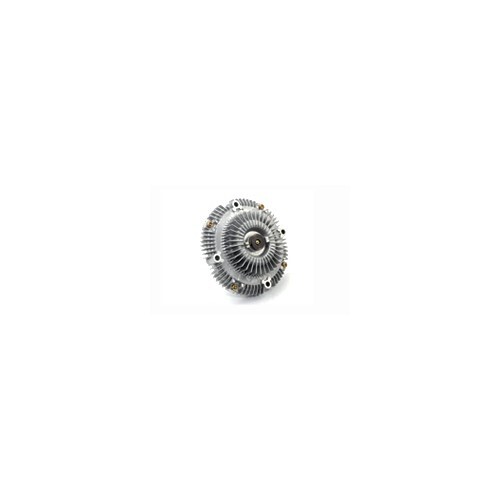

DAVIES CRAIG Fan Clutch Part No: 5102
Description
Fan Clutch - Part No: 5102
Fan clutches reduce the drain of engine power and improve the efficiency of a vehicle's cooling system. A fluid coupling devices which provide air flow through the radiator by using the water pump shaft to power a fan blade. Thermal fan clutches have a built-in thermostat coil spring that detects the air temperature passing through the radiator and air conditioning condenser.
*PLEASE REFER TO SELECTION GUIDE
SPECIFICATIONS | |
TYPE | A |
ROTATION | CW |
OVERALL DIAMETER A | 135.7 |
PILOT DIAMETER B | 16.0/TAPER |
PILOT DEPTH C | 9.9/23.2 |
FLANGE CIRCLE D | 75.7 |
FAN MOUNT HEIGHT E | 61.1 |
FAN BOLT CIRCLE F | 122.0 |
FAN MOUNT DIAMETER G | 104.0 |
OVERALL HEIGHT H | 80.6 |
BOLT / NUT TYPE (FAN TO CLUTCH) | 6MM x 1.0 NUT |
Specifications
SKU | daviescraig-dc5102 |
Brand | DAVIES CRAIG |
Shipping Weight | 10.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
