SKU: daviescraig-dc2774

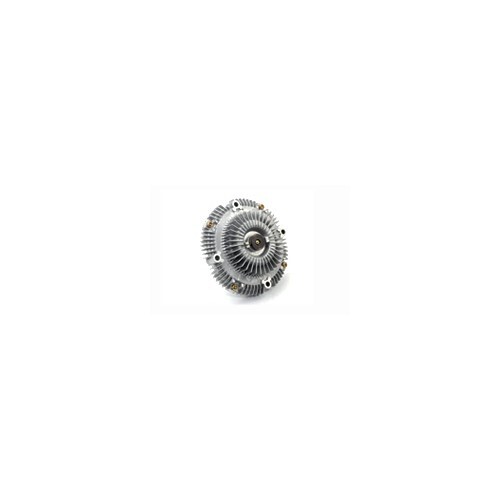

DAVIES CRAIG Fan Clutch Part No: 2774
Description
Fan Clutch - Part No: 2774
Fan clutches reduce the drain of engine power and improve the efficiency of a vehicle's cooling system. A fluid coupling devices which provide air flow through the radiator by using the water pump shaft to power a fan blade. Thermal fan clutches have a built-in thermostat coil spring that detects the air temperature passing through the radiator and air conditioning condenser.
*PLEASE REFER TO SELECTION GUIDE
SPECIFICATIONS | |
TYPE | C |
ROTATION | CCW |
OVERALL DIAMETER A | 183.6 |
PILOT DIAMETER B | RIGHT HAND |
PILOT DEPTH C | THREAD ON |
FLANGE CIRCLE D | 37.0MM A/F |
FAN MOUNT HEIGHT E | 31.8 |
FAN BOLT CIRCLE F | 82.6 |
FAN MOUNT DIAMETER G | 66.3 |
OVERALL HEIGHT H | 75.7 |
BOLT / NUT TYPE (FAN TO CLUTCH) | 5/16-18 BOLT |
Specifications
SKU | daviescraig-dc2774 |
Brand | DAVIES CRAIG |
Shipping Weight | 10.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
