SKU: daviescraig-dc2709
DAVIES CRAIG Fan Clutch Part No: 2709
Description

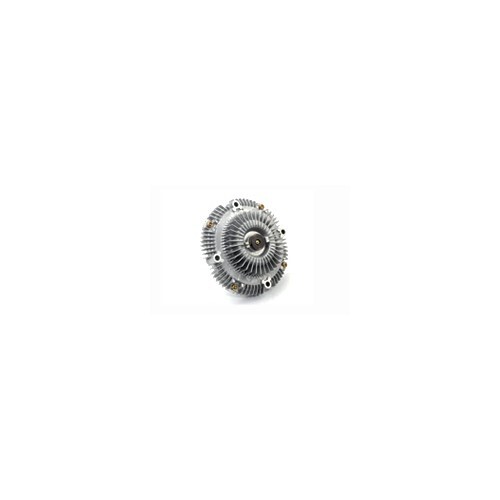

Fan Clutch - Part No: 2709
Fan clutches reduce the drain of engine power and improve the efficiency of a vehicle's cooling system. A fluid coupling devices which provide air flow through the radiator by using the water pump shaft to power a fan blade. Non-thermal fan clutches are constantly engaged and have a limited maximum spin rate.
*PLEASE REFER TO SELECTION GUIDE
SPECIFICATIONS | |
TYPE | B |
ROTATION | CW |
OVERALL DIAMETER A | 184.2 |
PILOT DIAMETER B | LEFT HAND |
PILOT DEPTH C | THREAD ON |
FLANGE CIRCLE D | 32.0MM A/F |
FAN MOUNT HEIGHT E | 25.9 |
FAN BOLT CIRCLE F | 82.6 |
FAN MOUNT DIAMETER G | 66.3 |
OVERALL HEIGHT H | 67.1 |
BOLT / NUT TYPE (FAN TO CLUTCH) | 5/16-18 BOLT |
Specifications
SKU | daviescraig-dc2709 |
Brand | DAVIES CRAIG |
Shipping Weight | 10.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
