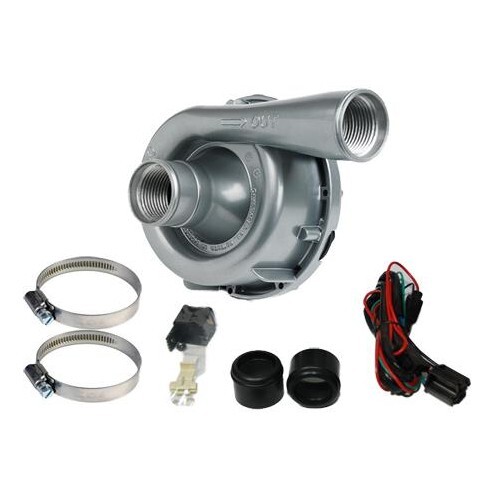

EWP150 Kit - 12V 150LPM/40GPM Remote Electric Water Pump (PART #8060)

The EWP150 Alloy 12V is available for purchase in following options:

• Pump Only (Part #8160)
• Kit (Part #8060)
• Combo with Controller (Part #8970)

Muscle up your engine cooling system with the Davies Craig EWP 150 alloy Electric Water Pump. Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat.

The compact EWP150 alloy unit is manufactured with -AN16 (12) internal inlet and outlet threads for neat, tight screw-in fitting applications.
This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. This essential performance accessory increases power to your vehicle’s drive wheels and improves coolant temperature control.

EWP & CONTROLLER INSTALLATION DEMONSTRATION

Combined with an LCD EWP/Fan Digital Controller (Sold separately Part #8002 or combo #8970) will manage both the EWP and Thermatic fan operation. The Digital Controller will vary the speed of the EWP in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency. The Thermatic Fan/s will be activated automatically once the engine coolant rises 3°C (5.4°F) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 10°C / 14°F below the set temperature) after engine shut down, eliminating ‘heat soak’ and extending engine life. The EWP80 Digital Controller Combo is supplied in a do-it-yourself kit with everything you need for fitment to your vehicle’s engine, including an easy-to-follow DIY instruction booklet.

The world’s most advanced total engine cooling management system:

 universal fit

 more power

 more cooling

 increase fuel efficiency

 extend engine life

 world-leading technology

EWP INSTALLATION OPTIONS

Installing an EWP as an AUXILIARY PUMP

• Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose.
• Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

EWP INSTALLATION – disabling Mechanical water pump

• Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose and remove the manufacturer’s thermostat.
• You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
• If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

In both these cases, the EWP will pump past the impeller of the mechanical water pump.

Disengaged mechanical water pump (recommended)

• Remove the mechanical water pump and remove the thermostat.
• Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.

• Block any bypass passages and re-install the disengaged water pump ensuring that all gasket surfaces are clean and the new gaskets are properly fitted to prevent leaks.
• Install the EWP^Ò into the bottom radiator hose.

Removed mechanical water pump (Ideal)

• Remove the mechanical water pump and thermostat from the engine.
• Install a Davies Craig EWP Header Adaptor or blanking plate (not supplied). Ensuring the gasket surfaces are clean and the appropriate gasket or sealant is used to prevent leaks.
• Install the EWP into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
• Install an appropriate length belt (not supplied) to drive the accessories.

In most cases EWP will be adequately supported by the radiator hose. Where mounting is required, the EWP must be soft mounted to protect against vibration. For the EWP115, EWP130 and EWP150 Part #8700 Mounting bracket is recommended.

Product Selection Guide
Application	Pump Model	Pump Kit		Pump Combo		Controller / Switch
		Part # 12 V	Part # 24 V	Part# 12 V	Part # 24 V	Part # 12 V	Part # 24 V
Motorbike up to 500cc (Standard)	EBP15	9001				0444 or 0500
Motorbike 500cc - 1000cc (Std)	EBP23	9050				0444 or 0500
Motorbike 1000cc - 2000cc (Std)	EBP25	9005				0444 or 0500
Vehicle Heater System (Standard)	EBP23	9050				0444 or 0500
LPG (Butane) System (Standard)	EBP23	9050				0444 or 0500
Intercooler (depending on capacity)	EBP23	9050
	EBP25	9005
	EBP40	9040	9041			0444 or 0500	0444 or 0500
	EWP80	8005		8807
Engines up to 2.0L (Standard)	EWP80	8005		8807		8002	8002
Engines up to 2.0L - 3.5L (Standard)	EWP115	8025 or 8040	8026 or 8041	8830 or 8850	8831 or 8851	8002	8002
Engines up to 3.5L - 5.0L (Standard)	EWP130	8080	8081	8890	8891	8002	8002
Engines 5.0L or greater (Standard)	EWP150	8060	8061	8870	8871	8002	8002
Modified Engines Supercharged/Turbo	EWP150 Specifications SKU daviescraig-dc8060 Brand DAVIES CRAIG Shipping Weight 13.0000kg Shipping Width 0.500m Shipping Height 0.200m Shipping Length 0.250m More From This Category $315.00 or 4 payments of $78.75 with Info SKU: daviescraig-dc8041 EWP115 Alloy Kit - 24V 115LPM/30GPM Remote Electric Water Pump (8041) Add to Cart $134.79 or 4 payments of $33.70 with Info SKU: jrad-JWP0168 Jayrad Water Pump for A4 A5 A6 Q5 Q7 S4 S5/Touareg/Porsche Add to Cart $230.00 or 4 payments of $57.50 with Info SKU: daviescraig-dc8141 DAVIES CRAIG EWP115 Alloy - 24V 115LPM/30GPM Remote Electric Water Pump (8141) Add to Cart $1,349.00 or 4 payments of $337.25 with Info SKU: MEZ-WP119CHD Meziere Electric Water Pump for Chevy LS, 42GPM Heavy Duty Motor - Chrome Add to Cart $82.00 or 4 payments of $20.50 with Info SKU: daviescraig-dc1024 DAVIES CRAIG Alloy Adaptor AN-16 EWP 90° Elbow (1024) Add to Cart $219.97 or 4 payments of $54.99 with Info SKU: jrad-JWP0017 Jayrad Water Pump for Patrol GU/Y61 3.0L 07-16 Add to Cart $219.00 or 4 payments of $54.75 with Info SKU: MEZ-WN0071 Meziere Inline Thermostat Housing, 1.25\" Hose to 1.25\" Hose Add to Cart $92.35 or 4 payments of $23.09 with Info SKU: jrad-JWP0076 Jayrad Water Pump for Hiace RZH/RCH/RZN Add to Cart Subscribe to our newsletter CONTACT US Unit 12, 8-14, St Jude Crt, BROWN PLAIN , QLD, 4118, AU ( 61) 07 3800 8355 ABN: 58 134 888 154 Follow Us On : Encrypted Checkout CATEGORIES ACCESSORIES AERODYNAMICS BRAKES BOOKS & GIFT CLOTHING COOLING DRIVETRAIN ELECTRONICS ENGINE CATEGORIES EXHAUST FORCED INDUCTION HANDLING INTAKE INTERIOR LIGHTS OEM TYRES WHEELS INFORMATION Terms of Use Privacy Policy Returns Policy SERVICE My Account Track Order Resolution Centre ABOUT US About Us Contact Us Copyright © 2025 CJ MOTOR Contact Us Back to top × Shop Now. Pay Later. Always interest-free. Add your favourites to cart Select Afterpay at checkout Log into or create your Afterpay account, with instant approval decision Your purchase will be split into 4 payments, payable every 2 weeks All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase For complete terms visit afterpay.com/terms
