SKU: daviescraig-dc8160

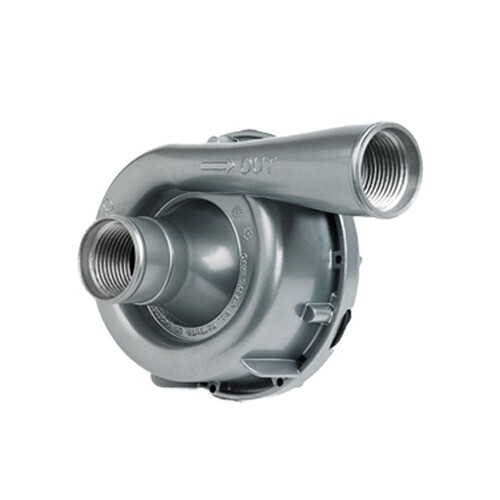

DAVIES CRAIG EWP150 - 12V 150LPM/40GPM Remote Electric Water Pump (8160)

$253.00

or 4 payments of $63.25 with Info



In Stock


Calculate Shipping



Australia wide rate - $30.00 (ETA: 3 days)

Description

EWP150 - 12V 150LPM/40GPM Remote Electric Water Pump (PART #8160)

The EWP150 Alloy 12V is available for purchase in following options:

  • Pump Only (Part #8160)
  • Kit (Part #8060)
  • Combo with Controller (Part #8970)

Muscle up your engine cooling system with the Davies Craig EWP 150 alloy Electric Water Pump. Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat.


The compact EWP150 alloy unit is manufactured with -AN16 (12) internal inlet and outlet threads for neat, tight screw-in fitting applications.
This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. This essential performance accessory increases power to your vehicle’s drive wheels and improves coolant temperature control.

EWP & CONTROLLER INSTALLATION DEMONSTRATION



CONTENTS
Description Quantity
EWP150 Pump 12V 1



Technical Specifications
Voltage 12 Volt Pump
Operating voltage 3V DC to 15V DC
Maximum current 10A @ 13V
Flow rate (max) 150 L/min (39.63 US gal/min) @ 13V DC
Operating temp. -40° to 130°C  (-40° to 266°F)
Pump design Clockwise centrifugal with volute chamber
Pump weight 1,170 grams (2.6 lb)
Pump material Aluminium (Powder Coated)
Burst pressure 500 kPa (72.5 psi)
Seal Ceramic face seal
Self Priming No, none of our pumps are self-priming
Fits hose sizes 35mm to 51mm (1⅜” to 2”) Inlet & Outlet -16AN (12)
Push-On fitting Size

EWP Inlet & Outlet 38mm

  • with 3mm Sleeve (#8510) 44mm
  • with 6mm Sleeve (#8511) 51mm



Combined with an LCD EWP/Fan Digital Controller (Sold separately Part #8002 or combo #8970) will manage both the EWP and Thermatic fan operation. The Digital Controller will vary the speed of the EWP in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency. The Thermatic Fan/s will be activated automatically once the engine coolant rises 3°C (5.4°F) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 10°C / 14°F below the set temperature) after engine shut down, eliminating ‘heat soak’ and extending engine life. The EWP80 Digital Controller Combo is supplied in a do-it-yourself kit with everything you need for fitment to your vehicle’s engine, including an easy-to-follow DIY instruction booklet.

The world’s most advanced total engine cooling management system:


 universal fit

 more power

 more cooling

 increase fuel efficiency

 extend engine life

 world-leading technology



EWP INSTALLATION OPTIONS

Installing an EWP as an AUXILIARY PUMP

  • Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose.
  • Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

EWP INSTALLATION – disabling Mechanical water pump

  • Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose and remove the manufacturer’s thermostat.
  • You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
  • If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

In both these cases, the EWP will pump past the impeller of the mechanical water pump.

Disengaged mechanical water pump (recommended)

  • Remove the mechanical water pump and remove the thermostat.
  • Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.
  • Block any bypass passages and re-install the disengaged water pump ensuring that all gasket surfaces are clean and the new gaskets are properly fitted to prevent leaks.
  • Install the EWPÒ into the bottom radiator hose.

Removed mechanical water pump (Ideal)

  • Remove the mechanical water pump and thermostat from the engine.
  • Install a Davies Craig EWP Header Adaptor or blanking plate (not supplied). Ensuring the gasket surfaces are clean and the appropriate gasket or sealant is used to prevent leaks.
  • Install the EWP into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
  • Install an appropriate length belt (not supplied) to drive the accessories.

In most cases EWP will be adequately supported by the radiator hose. Where mounting is required, the EWP must be soft mounted to protect against vibration. For the EWP115, EWP130 and EWP150 Part #8700 Mounting bracket is recommended.

Product Selection Guide



Application



Pump Model

Pump Kit

Pump Combo

Controller / Switch

Part # 12 V

Part # 24 V

Part# 12 V

Part # 24 V

Part # 12 V

Part # 24 V

Motorbike up to 500cc (Standard)

EBP15

9001







0444 or 0500





Motorbike 500cc - 1000cc (Std)

EBP23



9050









0444 or 0500





Motorbike 1000cc - 2000cc (Std)

EBP25



9005









0444 or 0500





Vehicle Heater System (Standard)

EBP23



9050









0444 or 0500





LPG (Butane) System (Standard)

EBP23



9050









0444 or 0500





Intercooler

(depending on capacity)

EBP23

9050











EBP25

9005











EBP40

9040

9041





0444 or 0500

0444 or 0500

EWP80

8005



8807









Engines up to 2.0L (Standard)

EWP80



8005





8807





8002



8002



Engines up to 2.0L - 3.5L (Standard)

EWP115

8025 or

8040

8026 or

8041

8830 or

8850

8831 or

8851



8002



8002



Engines up to 3.5L - 5.0L (Standard)

EWP130



8080



8081



8890



8891



8002



8002



Engines 5.0L or greater (Standard)

EWP150



8060



8061



8870



8871



8002



8002

Modified Engines

Supercharged/Turbo

EWP150



8060



8061



8870



8871



8002



8002



Drag Racing, Drifting &

Specifications

SKU daviescraig-dc8160
Brand DAVIES CRAIG
Shipping Weight 13.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.250m
