SKU: daviescraig-dc10208

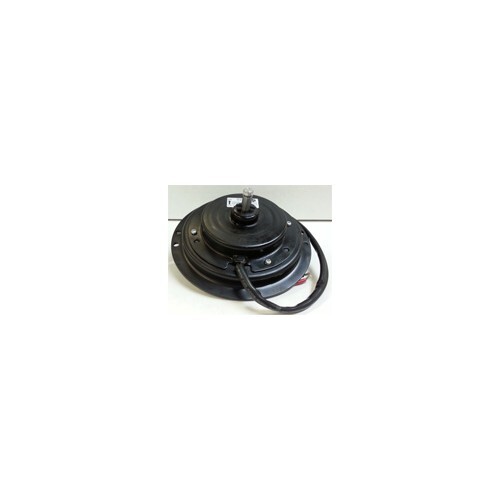

DAVIES CRAIG Electric Motor - EMC, FM-233 ,(24V 120 WATT) (10208)
Description
Electric Motor (Part #10208)
(EMC Certified)
Davies Craig distribute an extensive range of 12 and 24 volt DC motors with input power of 80 to 225 Watt and a number of shaft configurations for a vast array of applications including replacements for our Thermatic fan products, custom installations of air circulation, air conditioning, refrigeration. Davies, Craig insists on quality, and will only source motors from well known and highly respected manufacturers of electric motors such as Panasonic in Japan.
- Direct Replacement for Part # 0206
SPECIFICATIONS | |
MODEL | FM-233 |
VOLTAGE | DC 24V |
TORQUE | 3.05 KgF.cm |
SPEED | 2330 +/-10% RPM |
CURRENT | 5.0 +/- 0.75 AMPS |
NO LOAD SPEED | 3400 RPM +/- 10% |
NO LOAD CURRENT | 1.0 AMPS |
INPUT POWER | 120 W |
OUTPUT POWER | 73W |
ROTATING DIRECTION | CW |
EMC | YES |
Specifications
SKU | daviescraig-dc10208 |
Brand | DAVIES CRAIG |
Shipping Weight | 13.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
